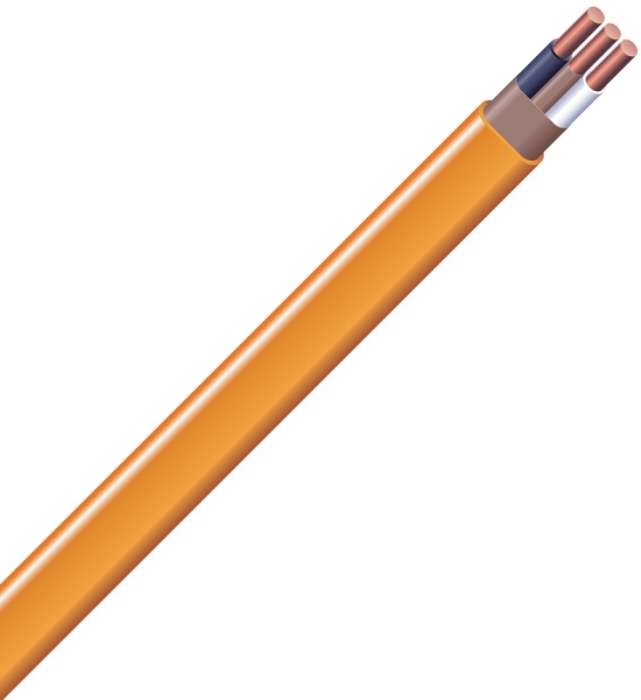

Southwire 10/2NM-WGX1000 Sheathed Cable, 10 AWG Wire, 2 -Conductor, 1000 ft L, Copper Conductor, PVC Insulation

SKU
ORG0303420
$1,390.00 /BOX

Delivered in 2-4 business days

Out of stock
  • SIMpull jacket designed for easier pulling
  • Color-coded jacket
  • For residential wiring such as branch circuits for outlets, switches and other loads

Inner conductors are type THHN, rated 90 deg C, 600 V. Solid strands. Outer jacket is PVC, rated at 75 deg C. Amp rating of the product is limited to that for 60 deg C rated conductors per the National Electric Code Article 336. Dwellings not exceeding 3 floors above grade. Exposed or concealed wiring. May be fished through walls, ceilings and masonry blocks. Use for new wiring or replacement wiring. Only for use in normally dry locations. UL listed.


Conductor InsulationPVC
Conductor MaterialCopper
Current Rating30A
Length1000in
Number of Conductors2
Operating Temperature90deg C
Sheath ColorOrange
Sheath MaterialNylon
Strands per Conductor1
TypeNM-B
Voltage Rating600V
Wire Size10AWG
BrandSouthwire
Weight (lbs)141.0000
UPC739373005083
MPN10/2NM-WGX1000
