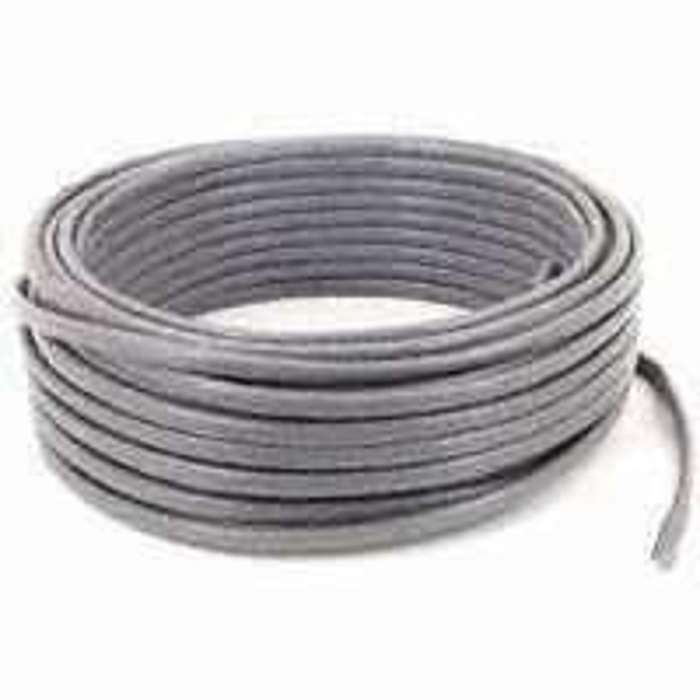

Southwire 13084905 Service Entrance Cable, 3 -Conductor, Copper Conductor, PVC Insulation, Gray Sheath, 600 V

SKU
ORG1483825
$6,054.85 /BOX
Out of stock

Above ground service entrance and branch circuit. Maximum operating temperature of phase conductors not to exceed 90 deg C for dry locations or 75 deg C for wet locations, 600 V. Color coded phase conductors. Full or reduced neutral constructions. Fiberglass reinforced tape under the outer jacket. Sunlight- and moisture-resistant, flame retardant jacket. UL listed. Amp capacities listed are at 30 deg C/85 deg F.


Conductor InsulationPVC
Conductor MaterialCopper
Current Rating130 A
Number of Conductors3
Operating Temperature90 deg C
Sheath ColorGray
TypeSEU
Voltage Rating600 V
BrandSouthwire
Weight (lbs)336.000000
UPC032886269677
MPN13084905
