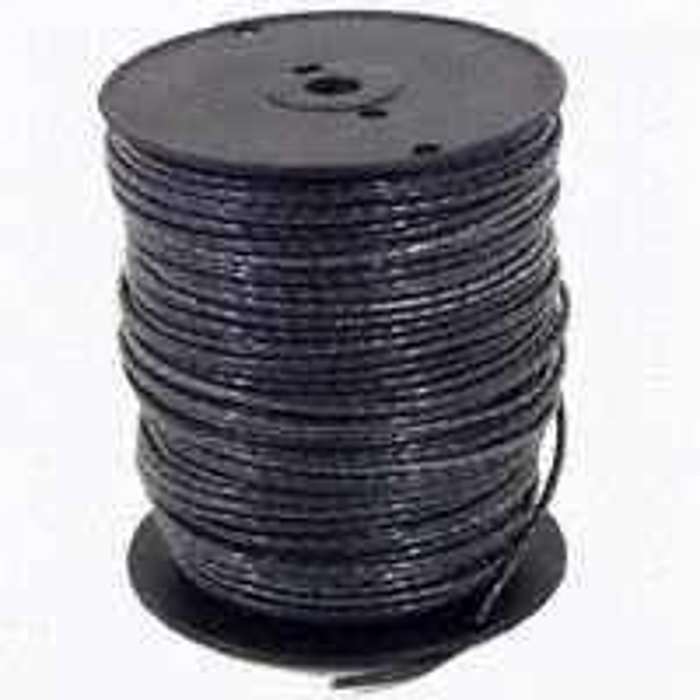

Southwire 3BK-STRX500 Building Wire, 3 AWG Wire, 1 -Conductor, 500 ft L, Copper Conductor, Thermoplastic Insulation
SKU
ORG4152492
by Southwire
$975.00 /BOX
Delivered in 2-4 business days
Out of stock
- For services, feeders and branch circuits in commercial or industrial application
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Wiring
Southwire SIMpull THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 V. SIMpull THHN copper conductors are designed to be installed without application of a pulling lubricant.
| Conductor Insulation | Thermoplastic |
|---|---|
| Conductor Material | Copper |
| Current Rating | 110A |
| Length | 500in |
| Number of Conductors | 1 |
| Operating Temperature | 90deg C |
| Sheath Color | Black |
| Sheath Diameter | 346mil |
| Sheath Material | Nylon |
| Stranded/Solid | Stranded |
| Strands per Conductor | 19 |
| Voltage Rating | 600V |
| Wire Size | 3AWG |
| Brand | Southwire |
|---|---|
| Weight (lbs) | 96.8000 |
| UPC | 032886232503 |
| MPN | 3BK-STRX500 |
