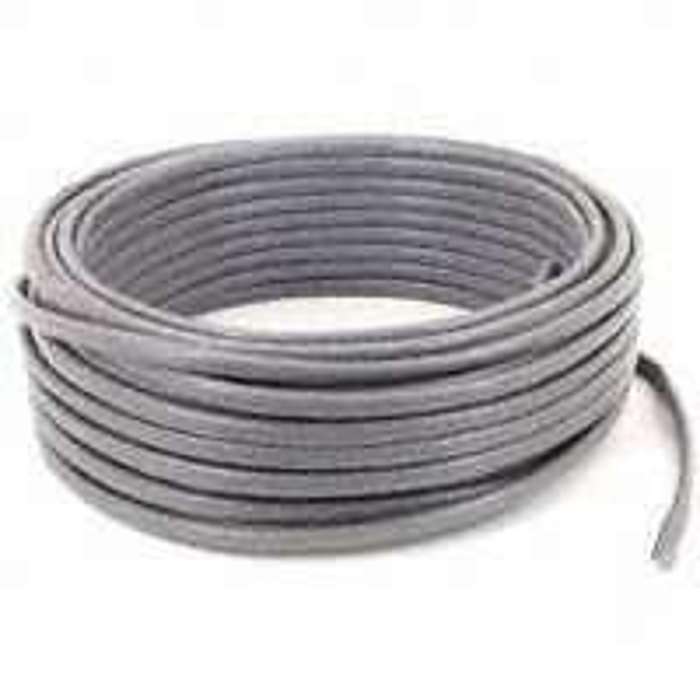

Southwire 6/6/8CX200 Service Entrance Cable, 3 -Conductor, Copper Conductor, PVC Insulation, Gray Sheath, 600 V
SKU
ORG6430185
by Southwire
$949.00 /EACH
Delivered in 2-4 business days
Out of stock
- Sunlight-resistant PVC jacket
- Copper concentric neutral
- For conveying power from the service drop to the meter base and from the meter base to the distribution panel board
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Wiring
Above ground service entrance and branch circuit. Maximum operating temperature of phase conductors not to exceed 90 deg C for dry locations or 75 deg C for wet locations, 600 V. Color coded phase conductors. Full or reduced neutral constructions. Fiberglass reinforced tape under the outer jacket. Sunlight- and moisture-resistant, flame retardant jacket. UL listed. Amp capacities listed are at 30 deg C/85 deg F.
| Conductor Insulation | PVC |
|---|---|
| Conductor Material | Copper |
| Current Rating | 75 A |
| Number of Conductors | 3 |
| Operating Temperature | 90 deg C |
| Sheath Color | Gray |
| Type | SEU |
| Voltage Rating | 600 V |
| Brand | Southwire |
|---|---|
| Weight (lbs) | 57.5000 |
| UPC | 032886269356 |
| MPN | 6/6/8CX200 |
