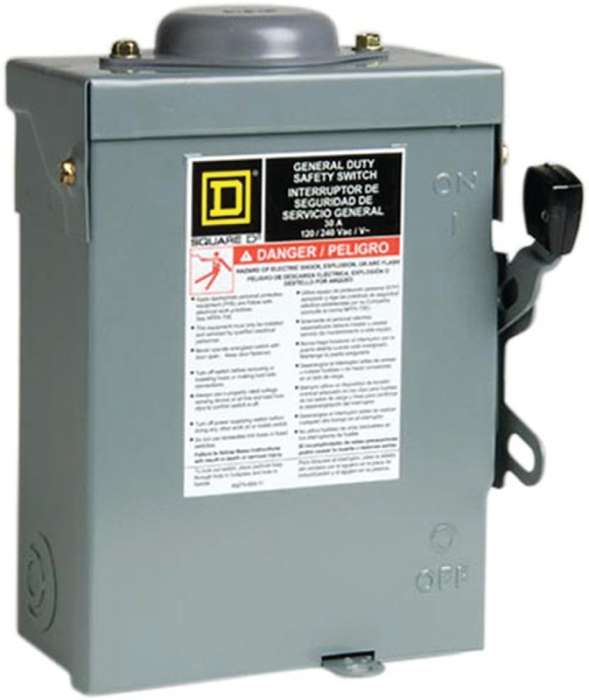

Square D D221NRBCP Safety Switch, 2 -Pole, 30 A, 240 V, Lug Terminal
SKU
ORG6028526
by SQUARE D
$107.48 /EACH
Delivered in 2-4 business days
In stock
Only 6 left
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Switches & Sockets
Single phase, 2-pole, 3-wire, 2 blades and fuseholders, factory installed solid neutral, 120/240 VAC, with metallic enclosure. Bolt on hubs. Rated 1-1/2 hp. For residential or commercial applications. Typical loads include lighting, air conditioning, appliances and branch circuit disconnects. 7-1/4 in x 9.63 in x 3-3/4 in. UL listed, meets NEMA 3R standard.
| Current Rating | 30 A |
|---|---|
| Finish | Galvannealed |
| Height | 9.5 in |
| Length | 9-5/8 in |
| Mounting Type | Surface |
| Nema Rating | NEMA 3R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Short Circuit Rating | 100 kA |
| Terminal Type | Lug |
| Type | Fusible |
| Voltage Rating | 240 V |
| Width | 7-1/4 in |
| Brand | SQUARE D |
|---|---|
| Weight (lbs) | 4.7500 |
| UPC | 047569521614 |
| MPN | D221NRBCP |
