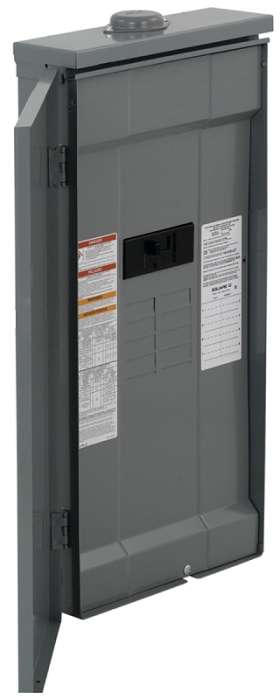

Square D HOM816M200PFTRB Load Center, 16 -Pole, 200 A, 8 -Space, NEMA 3R Enclosure, Flush, Surface Mounting
SKU
ORG6994685
by SQUARE D
$233.04 /EACH
Delivered in 2-4 business days
In stock
Category: Wiring
Single phase, 3-wire, insulated/bonded split neutral. 200 A, 8 spaces/16 circuits maximum. 120/240 VAC. 10,000 AIR. For mobile homes and farm applications. Overhead or underground feeds and offers feed-thru lugs. Plated aluminum bus bar. Has a 22,000 maximum short circuit current rating. Provided equipment: circuit breaker [space(1) 2P 200 A 120/240 VAC main supply ready assembled and grounding bar [space(1) ready assembled. UL listed.
| Bus Bar Material | Aluminum |
|---|---|
| Cable Size | 4 AWG |
| Cover/Lid Type | Surface |
| Current Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Includes | PK15GTAL Ground Bar and Surface Cover |
| Interrupt Rating | 22 kA |
| Mounting Type | Flush Surface |
| Number of Phases | 1 |
| Number of Poles | 16 |
| Number Of Spaces | 8 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
| Weight (lbs) | 32.5000 |
|---|---|
| Brand | SQUARE D |
| UPC | 785901973959 |
| MPN | HOM816M200PFTRB |
