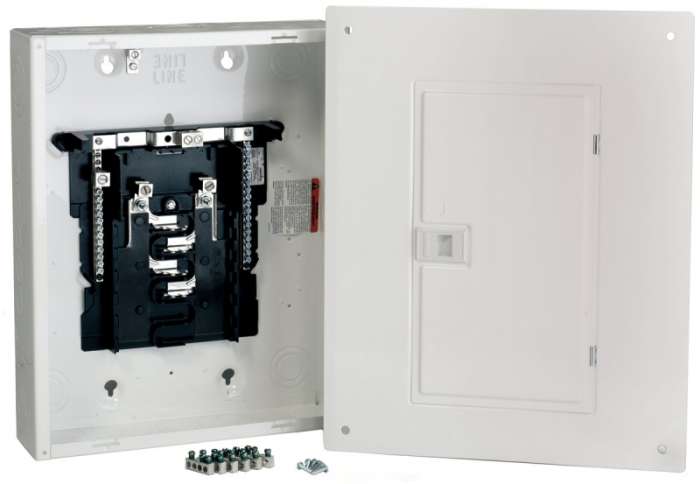

Square D Homeline CHOM816L125GCP Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, 8 -Circuit Breaker, White
SKU
ORG1284785
by SQUARE D
$249.70 /EACH
Delivered in 2-4 business days
Out of stock
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Wiring
Square D Homeline Load Center, 120/240 VAC, 125 A, 1 ph, 8 Spaces, 16 Circuits, Main Lug Breaker/Load Center, 10 kA Interrupt, #6, #2/0 AWG Cable, 3-Wire Wiring Configuration, Number of Circuit Breakers: 8, Bus Bar Material: Aluminum, Cover/Lid Type: Flush, NEMA 1 Enclosure, Wall Mounting, Sheet Steel, White, Includes: Grounding Bar
| Breaker/Load Center Type | Main Lug |
|---|---|
| Bus Bar Material | Aluminum |
| Cable Size | 6 2/0 AWG |
| Color | White |
| Cover/Lid Type | Flush |
| Current Rating | 125 A |
| Enclosure Type | NEMA 1 |
| Includes | Grounding Bar |
| Interrupt Rating | 10 kA |
| Material | Sheet Steel |
| Mounting Type | Wall |
| Number of Circuit Breakers | 8 |
| Number of Circuits | 16 |
| Number of Phases | 1 |
| Number Of Spaces | 8 |
| Voltage Rating | 120/240 VAC |
| Wiring Configuration | 3-Wire |
| Brand | SQUARE D |
|---|---|
| Weight (lbs) | 17.9000 |
| UPC | 785901974420 |
| MPN | CHOM816L125GCP |
