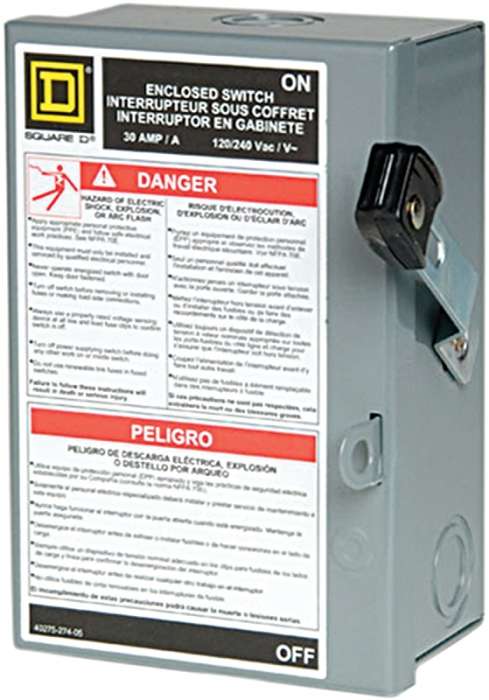

Square D L221N Safety Switch, 2 -Pole, 30 A, 240 V, DPST, Lug Terminal
SKU
ORG6589774
by SQUARE D
$71.01 /EACH
Delivered in 2-4 business days
Out of stock
- The light-duty safety switch has visible blades and a ground lug as standard features
- Available with plug or cartridge fuse holders
- Grounding kit standard
- For workshops, hobby rooms, furnaces and garages
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Switches & Sockets
Single phase, 2-pole, 3 wire (2 blades, fuseholders and 1 neutral), 120/240 VAC. Rated 3 hp at 240 VAC, with metallic enclosure. 10,000 AIC (short circuit rating) with class H cartridge fuses. NEMA type 1 enclosure. Terminal lug data: (1) #12 - 6 Al or #14 - 6 Cu. wire. Service ground bar kit PKGTA1 sold separately. Padlock attachment for lock off. UL listed, meets NEMA standard KS1.
| Contact Configuration | DPST |
|---|---|
| Current Rating | 30A |
| Height | 6.5in |
| Includes | (2) Blades and Fuse Holders (1) Solid Neutral |
| Mounting Type | Surface |
| Nema Rating | NEMA 1 |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Short Circuit Rating | 10kA |
| Terminal Type | Lug |
| Type | Fusible |
| Voltage Rating | 240V |
| Width | 5in |
| Brand | SQUARE D |
|---|---|
| Weight (lbs) | 3.5500 |
| UPC | 785901499022 |
| MPN | L221N |
