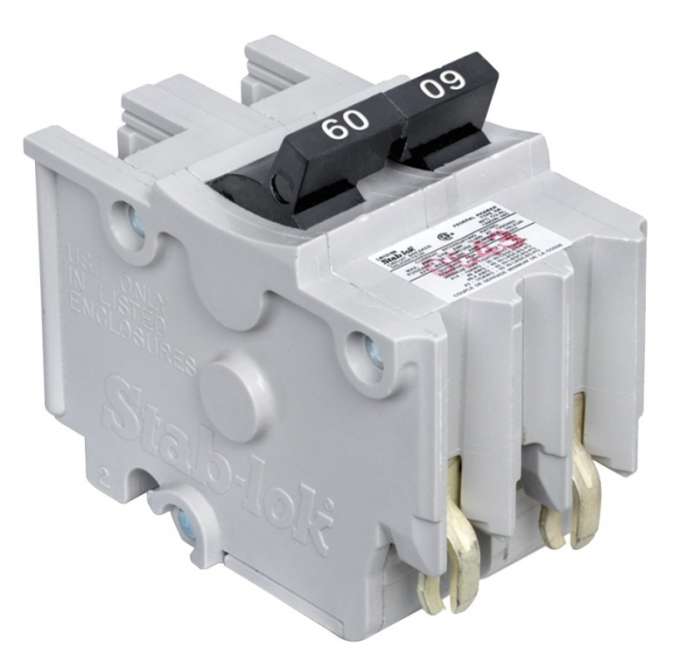

Square D Stab-lok NA260CP Circuit Breaker, Mini, Type NA, 60 A, 2 -Pole, 120/240 V, Plug Mounting, White
SKU
ORG1186477
by SQUARE D
$160.72 /EACH
Delivered in 2-4 business days
Out of stock
- Provides overload and short circuit protection
- Color-coded handle identification is quick and easy with separate colors representing different ampere ratings
- Provides slot/Robertson screws
- Arc-resistant case
- For overload and short circuit protection
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Wiring
Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2 in wide per pole, allows for the reduction of the size and weight of the loadcenter. These breakers are CSA approved to work only in federal pioneer branded residential panel.
| Actuator Type | Magnetic Thermal |
|---|---|
| Color | White |
| Current Rating | 60A |
| Dimensions | 2 in W x 3 in D x 3.4 in H |
| Interrupt Rating | 10kA |
| Mounting Type | Plug |
| Number of Poles | 2 |
| Number Of Spaces | 4 |
| Operating Temperature | 40deg C |
| Terminal Type | Lug |
| Type | Mini Type NA |
| Voltage Rating | 120/240V |
| Wire Size | 14 to 2AWG |
| Brand | SQUARE D |
|---|---|
| Weight (lbs) | 0.2000 |
| UPC | 047569125140 |
| MPN | NA260CP |
