StarTech.com 16 Port 1U Rackmount USB KVM Switch with OSD

SKU
STCSV1631DUSBU
$621.60 /EACH

Delivered in 2-4 business days

Out of stock
  • OS Independent ? No drivers or software required
  • Auto-scan function automatically selects computer sequentially
  • Cascade configuration expands system capability
  • Front panel push-button and Hotkey switching allow easy computer access
  • Identifies and selects computers by the names assigned using the OSD
  • USB console connections
  • OSD security allows each PC to be password protected
  • Plug-and-play system configuration
  • Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
  • Supported 4 : 3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768

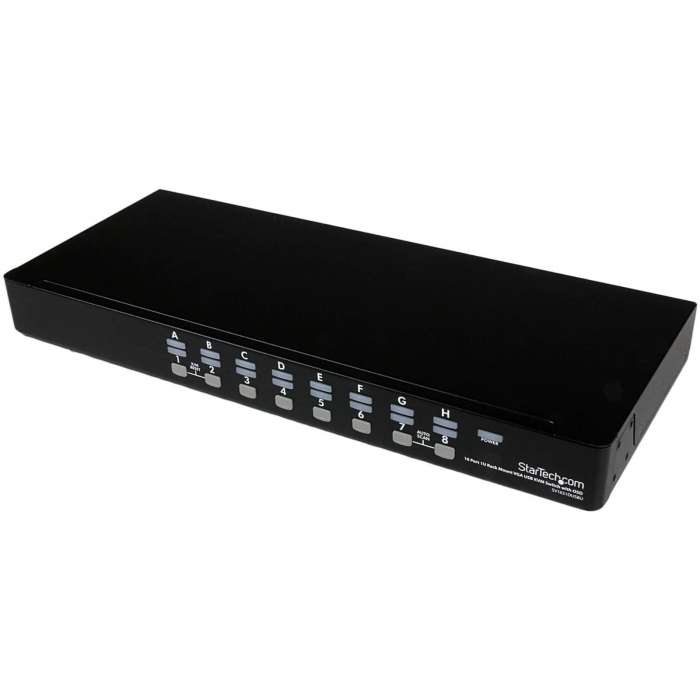

The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor). Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options. Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. The SV1631DUSBU onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below: 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable


Brand NameStarTech.com
Country of OriginTaiwan
Depth7.1"
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorDesktop
Form FactorRack-mountable
Height1.8"
Input Voltage Range110V AC to 240V AC
Limited Warranty3 Year
Manufacturer Part NumberSV1631DUSBU
ManufacturerStarTech.com
Maximum Video Resolution1920 x 1440
Number of Computers Supported16
Number of USB Ports2
Package Contents
  • 16 Port 1U Rack Mount USB KVM Switch with OSD
  • 2 x Mounting Brackets
  • 1 x Bag of Screws
  • 1 x Pack Rubber Feet
  • 1 x Power Adapter
  • 1 x User Manual
Packaged Quantity1
Product ModelSV1631DUSBU
Product Name16 Port 1U Rack Mount USB KVM Switch with OSD
Product TypeKVM Switchbox
Rack Height1U
TAA CompliantYes
USBYes
Weight (Approximate)6.83 lb
Width21.3"
UNSPSC43211601
Download PDF File
BrandStarTech.com
Weight (lbs)7.7500
UPC065030837224
MPNSV1631DUSBU
