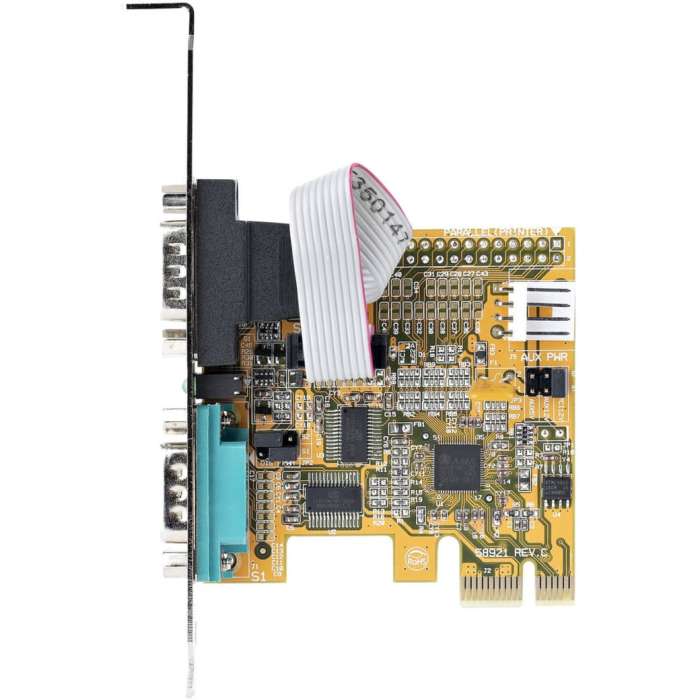

StarTech.com 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, COM Retention, Windows & Linux, Connect serial RS232 (DB9) devices, using this PC Serial Card. Supports 16C1050 UART. LED lights to monitor activity on t
Delivered in 2-4 business days
- PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this PC serial card. Features support for high performance 16C1050 UART on both DB9 male ports. Monitor activity with the built-in LED status lights on the PCI express DB9 card.
- DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile brackets are included.
- APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 ports accept screw locking serial cables.
- DUAL SERIAL PORT CARD SPECS: 16C1050 UART
- Max Baud 921.6 Kbps per Port
- 256 Byte FIFO
- COM Retention
- Supports Windows and Linux
- Asix AX99100 Chipset
- Odd/Even/Mark/Space/None Parity Modes
- 5/6/7/8/9 Data Bits
- PCIe 2.0 x1
- Low-profile Brackets.
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance .
- PCIe 2.0 x1
- 5/6/7/8/9 Data Bits
- Odd/Even/Mark/Space/None Parity Modes
- Asix AX99100 Chipset
- Supports Windows and Linux
- COM Retention
- 256 Byte FIFO
- Max Baud 921.6 Kbps per Port
Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device. Legacy Connectivity. Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more. Connect with Ease. The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility. 21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
| Additional Warranty Information | 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance. |
|---|---|
| Brand Name | StarTech.com |
| Card Height | Low-profile |
| Country of Origin | Taiwan |
| Depth | 2.6" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Plug-in Card |
| Height | 0.7" |
| Host Interface | PCI Express x1 |
| Manufacturer Part Number | 21050-PC-SERIAL-CARD |
| Manufacturer | StarTech.com |
| Number of Serial Ports (External) (Interfaces/Ports) | 2 |
| Number of Serial Ports (External) | 2 |
| Package Contents | Two-port PCIe Serial Card; 2 x Low-Profile Brackets; 1 x Quick-Start Guide |
| Platform Supported | Linux |
| Platform Supported | PC |
| Product Name | Two-port PCIe Serial Card |
| Product Type | Serial Adapter |
| Weight (Approximate) | 0 oz |
| Width | 2.6" |
| Download PDF File |
| UPC | 065030894760 |
|---|---|
| Weight (lbs) | 0.3500 |
| MPN | 21050-PC-SERIAL-CARD |
| Brand | StarTech.com |
