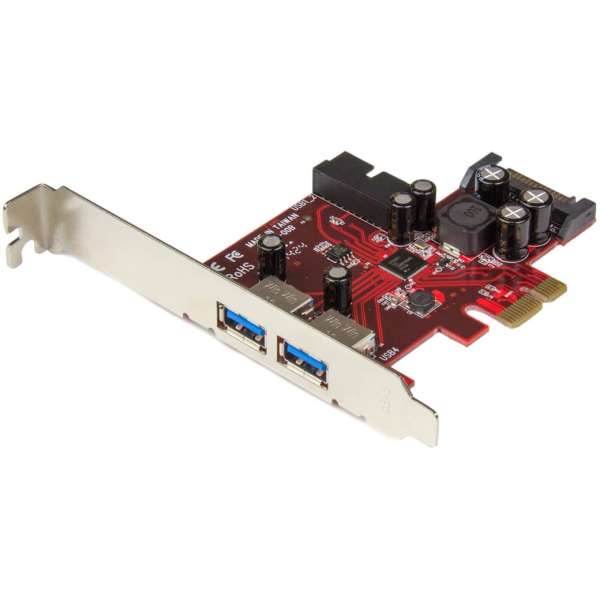

StarTech.com 4 Port PCI Express USB 3.0 Card, 5Gbps, 2 External & 2 Internal (IDC), SATA Power, Add front or rear panel USB 3.0 ports to your computer case using USB 3.0 motherboard-style headers
Delivered in 2-4 business days
- Flexibility to connect external and internal USB 3.2 Gen 1 devices and supports UASP
- Fast, hassle-free setup with Windows 8 native support, and fits into standard or low-profile systems
- Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices
- Transfer large files at lightning speed, with throughput support up to 5 Gbps
- Optional SATA power connector provides up to 900mA per port for high-power USB devices
- PCIe x1 interface, compliant with PCI Express 2.0 specifications
- Configured with full-profile bracket, half-height bracket included
This PCI Express USB 3.2 Gen 1 card offers a cost-effective upgrade that lets you add four USB 3.2 Gen 1 ports to your computer through a PCIe slot. It offers two external ports plus two internal (IDC) USB 3.2 Gen 1 headers to help adapt your desktop or server to support a variety of USB 3.2 Gen 1 devices. With extra motherboard-style USB 3.2 Gen 1 headers you have the flexibility to add more internal USB 3.2 Gen 1 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades. For added convenience, the card integrates two external USB 3.2 Gen 1 ports, so you can plug in more devices such as external hard drives or printers. The USB 3.2 Gen 1 card is easy to install and requires no additional drivers or software in natively supported Windows 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed. Connecting older peripherals isn't a problem either. So, there's no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology. This high-performance SuperSpeed USB 3.2 Gen 1 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a The PEXUSB3S2EI is ruggedly built for reliable USB 3.2 Gen 1 device connections and is backed by a StarTech.com 2-year warranty and free lifetime technical support. Note: UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.
Brand Name | StarTech.com |
---|---|
Country of Origin | Taiwan |
Environmental Certification | REACH |
Environmental Certification | RoHS |
Environmental Certification | WEEE |
Environmentally Friendly | Yes |
Form Factor | Plug-in Card |
Height | 4.7" |
Host Interface | PCI Express x1 |
Length | 3.6" |
Manufacturer Part Number | PEXUSB3S2EI |
Manufacturer | StarTech.com |
Number of SATA Ports (Interfaces/Ports) | 1 |
Number of USB 3.2 Ports (Interfaces/Ports) | 4 |
Operating System Supported | Windows 10 |
Operating System Supported | Windows 11 |
Operating System Supported | Windows 7 |
Operating System Supported | Windows 8 |
Operating System Supported | Windows 8.1 |
Operating System Supported | Windows Server 2003 |
Operating System Supported | Windows Server 2008 R2 |
Operating System Supported | Windows Server 2012 |
Operating System Supported | Windows Server 2016 |
Operating System Supported | Windows Server 2019 |
Operating System Supported | Windows Vista |
Operating System Supported | Windows XP |
Package Contents | 4-port PCI Express USB 3.0 Card - 2 External, 2 Internal - SATA Power; 1 x Low-Profile Bracket; 1 x Driver CD; 1 x Instruction Manual |
Packaged Quantity | 1 |
Platform Supported | PC |
Product Color | Red |
Product Name | 4-port PCI Express USB 3.0 Card - 2 External, 2 Internal - SATA Power |
Product Type | USB Adapter |
TAA Compliant | Yes |
Total Number of USB Ports (Interfaces/Ports) | 4 |
Total Number of USB Ports | 4 |
UASP Support | Yes |
Weight (Approximate) | 1.90 oz |
Width | 0.7" |
Download PDF File |
UPC | 065030860338 |
---|---|
Weight (lbs) | 0.2500 |
MPN | PEXUSB3S2EI |
Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
Brand | StarTech.com |
