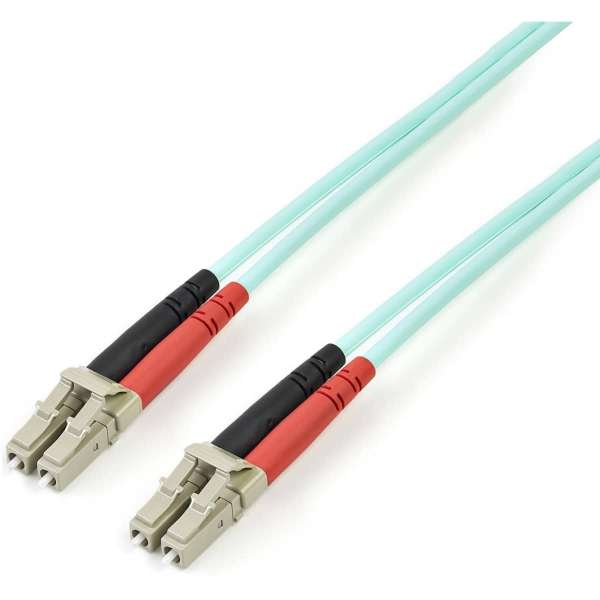

StarTech.com 5m (15ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex Zipcord Fiber, 100Gbps, LOMMF, LSZH Fiber Patch Cord

SKU
STCA50FBLCLC5
$38.09 /EACH

Delivered in 2-4 business days

In stock
  • OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: 50/125m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
  • SPECS: 5m (16.4ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

OM3 LC to LC Multimode Duplex Fiber Optic Patch Cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10-Gigabit Ethernet connection. With laser-optimized multimode fiber (LOMMF), it is ideal for connecting 850nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. High-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications. Maximum data-transfer rate is 100Gbps. Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat or in the event of a fire. Use in a wide range of environments, including industrial settings, central offices and schools as well as residential settings. OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.


Brand NameStarTech.com
Cable CharacteristicPatch Cable
Cable Length16.40 ft
Cable TypeFiber Optic
Connector Gender on First EndMale
Connector Gender on Second EndMale
Connector on First End Details2 x LC Network - Male
Connector on Second End Details2 x LC Network - Male
Connector Type on First EndLC Network - Male
Connector Type on Second EndLC Network - Male
Core/Cladding Diameter50/125 µm
Country of OriginChina
Data Transfer Rate10 Gbit/s
Device SupportedHub
Device SupportedNetwork Device
Device SupportedPatch Panel
Device SupportedRouter
Device SupportedSwitch
FeaturesCorrosion Resistant
FeaturesFlame Retardant
FeaturesHalogen Free
Fiber Optic ModeMulti-mode
Jacket TypeLSZH
Limited WarrantyLifetime
Manufacturer Part NumberA50FBLCLC5
ManufacturerStarTech.com
Product ColorAqua
Product Name5m 10Gb Aqua Multimode 50/125 Duplex LSZH Fiber Patch Cable LC - LC
Product TypeNetwork Cable
Weight (Approximate)0.15 lb
UNSPSC26121607
UPC065030827089
Weight (lbs)0.2000
MPNA50FBLCLC5
Prop65 WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
BrandStarTech.com
