(142814 ratings)

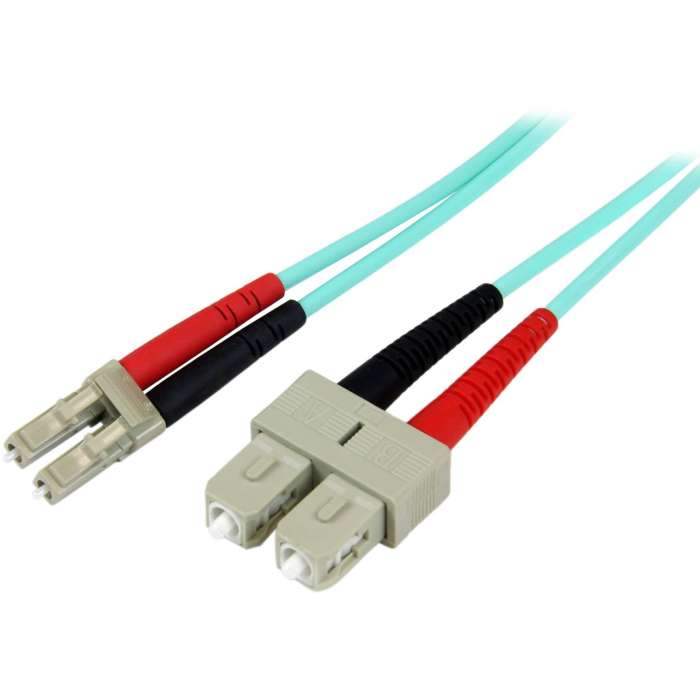

StarTech.com 5m (15ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex Zipcord Fiber, 100Gbps, LOMMF, LSZH Fiber Patch Cord
SKU
STCA50FBLCSC5
by StarTech.com
$34.25 /EACH
Delivered in 2-4 business days
In stock
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/SC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 LC/SC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 5m (16.4ft); Color: Aqua (OM3); LC/SC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHzkm at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Category: Fiber Optic Patch Cables
Perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher-end networking equipment, this high-speed 10-Gigabit Multimode Duplex Fiber Cable is terminated with LC and SC connectors and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds. Suited for a broad range of environments, fiber optic cable is housed in a flame-retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, ensuring minimal smoke, toxicity and corrosion in the event of a fire - making it an excellent choice for a wide range of environments, including industrial settings, central offices and schools as well as residential settings where building codes are a consideration.
| Brand Name | StarTech.com |
|---|---|
| Cable Characteristic | Patch Cable |
| Cable Length | 16.40 ft |
| Cable Type | Fiber Optic |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Core/Cladding Diameter | 50/125 µm |
| Country of Origin | China |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Hub |
| Device Supported | Network Device |
| Device Supported | Router |
| Device Supported | Switch |
| Features | Corrosion Resistant |
| Features | Flame Retardant |
| Features | Halogen Free |
| Fiber Optic Mode | Multi-mode |
| Jacket Type | LSZH |
| Limited Warranty | Lifetime |
| Manufacturer Part Number | A50FBLCSC5 |
| Manufacturer | StarTech.com |
| Product Color | Aqua |
| Product Name | 10Gb Fiber Optic Duplex Cable |
| Product Type | Network Cable |
| Weight (Approximate) | 0.17 lb |
| UNSPSC | 26121607 |
| UPC | 065030827201 |
|---|---|
| Weight (lbs) | 0.2000 |
| MPN | A50FBLCSC5 |
| Prop65 Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Brand | StarTech.com |
