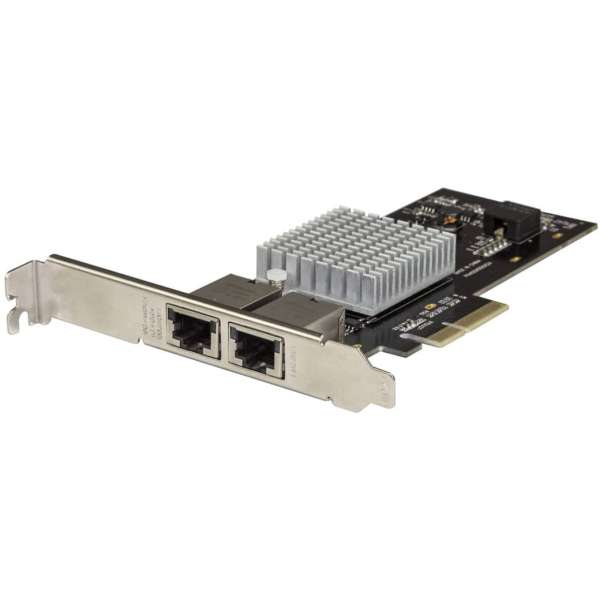

StarTech.com Dual Port 10G PCIe Network Adapter Card, Intel-X550AT 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port, PCIe Network Adapter Card Dual NIC ports Network Interface Card 2x 10 GbE RJ45 Ports, Intel X550AT Chip, 10GBASE-T / N

SKU
INGM2FM405
$470.85 /EACH

Delivered in 2-4 business days

Out of stock
  • WIDE HYPERVISOR & OS COMPATIBILITY: Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); VMWare ESXi 5.0, 5.1+.
  • ADVANCED FEATURES: Workstation NIC Supports SAN (Storage Area Network) advanced features including iSCSI offload and Fibre Channel over Ethernet (FCoE).
  • TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits validation tools to validate performance; compatible with major operating systems & hypervisor/virtualization platforms.
  • TECH SPECS: 10 Gbps
    • 2x RJ45 Ports
      • Intel X550AT
        • 10GBASE-T & NBASE-T
          • Muli-Gigabit 1 / 2.5 / 5 / 10 Gbps
            • PCI Express 3.0 x4
              • 15K Jumbo Frames
                • VLAN
                  • VT-c
                    • PXE
                      • Full & low profile
                        • 2Yr Warranty.
                        • DUAL PORT 10GbE NETWORK INTERFACE CARD: 10Gbps Dual port PCIe Network Adapter Card copper combines high data transfer rates to provide redundancy or independent connections to multiple networks .

This Thunderbolt3 to 10GbE NIC lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network. This adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the 2-port PCI Express 10G NIC (ST10GPEXNDPI), giving you one DisplayPort output, one additional Thunderbolt 3 port and two 10GbE ports. Reliable, high-performance and versatile multimode connectivity. This 10G network card utilizes the Intel X550 chipset with Intel Virtualization Technology for connectivity, delivering the power, performance and enhanced capabilities you need for dependable network connections. Install and assemble with ease. Requiring only a Phillips type screwdriver, you can assemble this Thunderbolt 3 to 10GbE NIC chassis in minutes. It connects easily through a single Thunderbolt 3 port on your computer. Change up your chassis. The Thunderbolt 3 chassis not only pairs well with the 10GbE NIC -- the card can be swapped for other PCIe cards to help support other functionality and performance. With the extra TB3 port and DP output built into the chassis, you will always have the ability to hook up extended displays to multitask effortlessly. The TB31PCIEX16 and ST10GPEXNDPI are backed by a StarTech.com 2-year warranty.


Brand NameStarTech.com
Chipset ManufacturerIntel
Chipset ModelX550AT
Country of OriginChina
Depth11"
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorPlug-in Card
Height3.2"
Host Interface (Interfaces/Ports)PCI Express 3.0 x4
Host InterfacePCI Express 3.0 x4
Manufacturer Part NumberST10GPEXNDPI
ManufacturerStarTech.com
Media Type SupportedTwisted Pair
Network Technology10GBase-T
Number of Network (RJ-45) Ports (Interfaces/Ports)2
Number of Network (RJ-45) Ports2
Package Contents2-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card - with Intel X550 Chip; 1 x Low-Profile Bracket; 1 x Quick-Start Guide
Packaged Quantity1
Product ColorBlack
Product Name2-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card - with Intel X550 Chip
Product Type10Gigabit Ethernet Card
System RequirementsWindows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; (Windows Drivers are supported in 64-bit only); Linux 3.x to 4.11 LTS Versions only
Total Number of Ports (Interfaces/Ports)2
Total Number of Ports2
Weight (Approximate)3.60 lb
Width5.6"
Download PDF File
UPC065030879538
Weight (lbs)0.4500
MPNST10GPEXNDPI
