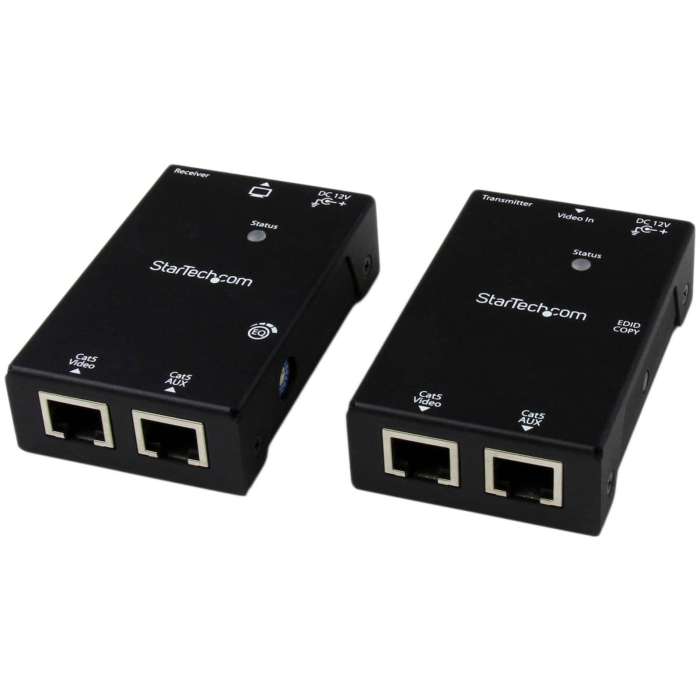

StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable

SKU
STCST121SHD50
$131.58 /EACH

Delivered in 2-4 business days

In stock
  • Power Over Cable allows a single power source to operate the Transmitter and Receiver
  • Supports Cat5e or Cat6 Ethernet cabling (50m)
  • No software/drivers required
  • Supports HD resolutions up to 1080p (1920x1080)
  • Includes transmitter (local) and receiver (remote) units

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables.For added versatility the kit features Power Over Cable andonly requires asingle power adapter that can be connected to either the Transmitter or Receiver. With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector. For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances. The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed.Plus, withPowerOverCable, you can easily extend anHDMI signal inareas where access to power outlets is limited. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.


Product TypeVideo Extender Transmitter/Receiver
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported1
Daisy ChainNo
Maximum Operating Distance164.04 ft
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Network (RJ-45)Yes
HDMI InYes
HDMI OutYes
Number of Network (RJ-45) Ports4
Number of HDMI Inputs1
Number of HDMI Outputs1
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 6
Input Voltage
  • 110 V AC
  • 220 V AC
Product ColorBlack
Product MaterialAluminum
Transmitter Height0.80"
Transmitter Width2"
Transmitter Depth3.10"
Receiver Height0.80"
Receiver Width2"
Receiver Depth3.10"
Length3.1"
Form FactorRack-mountable
Transmitter Weight (Approximate)11.08 oz
Receiver Weight (Approximate)11.08 oz
Package Contents
  • 1 x HDMI over CAT5e/6 UTP Transmitter
  • 1 x HDMI over CAT5e/6 UTP Receiver
  • 1 x Universal Power Adapter (NA / EU / UK / AU)
  • 2 x Mounting Brackets
  • 2 x Foot Pad Set
  • 1 x Instruction Manual
Certifications & Standards
  • CE
  • FCC
Environmentally FriendlyYes
Environmental Certification
  • RoHS
  • WEEE
  • REACH
Country of OriginTaiwan
TAA CompliantYes
Limited Warranty2 Year
Download PDF File
UPC065030851404
Weight (lbs)2.0000
Prop65 WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
MPNST121SHD50
BrandStarTech.com
