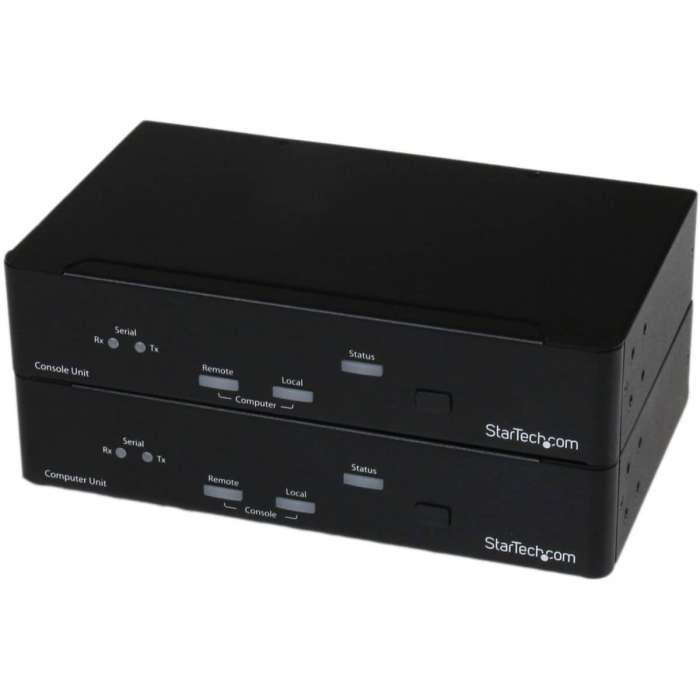

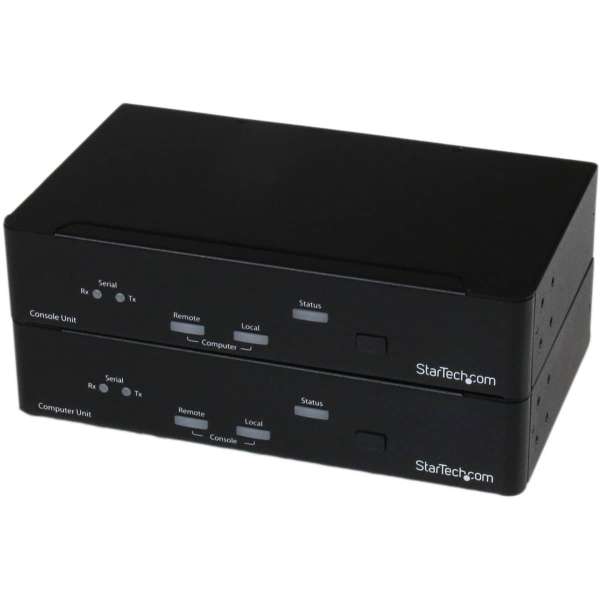

StarTech.com USB DVI KVM Extender Over Fiber 2km

SKU
STCSV565FXDUSA
$2,260.95 /EACH

Delivered in 2-4 business days

Out of stock
  • Fully compatible with DVI-D and HDMI standards by DDWG
  • Extends multiple signals: USB keyboard and mouse, RS232 serial, digital video (DVI/HDMI), and audio
  • High definition resolution support up to 1920 x 1200 (and HD 1080p)
  • 30m (98ft) Multimode fiber cable included
  • Completely free of Electromagnetic interference (EMI)
  • Digital video transmission allows for zero signal loss, and 100% true picture at destination even over long distance
  • Optional rack mount bracket (sold separately) allows the extenders to be mounted into any standard 19in rack
  • Hot-key and push-button controls
  • HDCP compliant
  • Maximum supported distance of 2000m (6562 ft)

The SV565FXDUSA USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber (2km) lets you control a server, computer or multiple computers (connected through KVM Switch) over a multi-mode fiber link, at distances of up to 2000m (6562 ft) away. By transmitting the digital DVI video (or HDMI with a DVI to HDMI adapter) over a multi-mode optical fiber link there is no loss of signal quality, so the video is as sharp and vivid as if the monitor was connected directly to the PC. For added convenience, the Console/KVM extender supports USB computer connections, and is compatible with any brand of USB KVM Switch. Backed by a StarTech.com 3-year warranty and free lifetime technical support.


Brand NameStarTech.com
Connectivity TechnologyWired
Country of OriginTaiwan
DVIYes
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorDesktop
Form FactorRack-mountable
Graphic ModeWUXGA
Input Voltage Range110V AC to 240V AC
Input Voltage120 V AC
Input Voltage240 V AC
Limited Warranty3 Year
Manufacturer Part NumberSV565FXDUSA
ManufacturerStarTech.com
Maximum Operating Distance6561.68 ft
Maximum Video Resolution1920 x 1200
Number of Computers Supported2
Number of DVI Ports4
Number of USB Ports6
Package Contents
  • 1 x Local Extender Unit
  • 1 x Remote Extender Unit
  • 4 x Rackmount Brackets
  • 1 x 30m (98ft) MM Fiber Cable
  • 2 x Sets of DVI USB and Audio Cables
  • 1 x Rubber Feet
  • 2 x Universal Power Adapter (US/UK/EU)
  • 1 x Manual
Power Consumption18 W
Product ColorBlack
Product NameUSB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km
Product TypeKVM Console/Extender
Receiver Depth5.30"
Receiver Height1.70"
Receiver Weight (Approximate)2.20 lb
Receiver Width8.70"
TAA CompliantYes
Transmitter Depth5.30"
Transmitter Height1.70"
Transmitter Weight (Approximate)2.20 lb
Transmitter Width8.70"
USBYes
UNSPSC43211603
Download PDF File
BrandStarTech.com
Weight (lbs)12.5200
UPC065030839426
MPNSV565FXDUSA
