StarTech.com USB VGA KVM Console Extender over Cat5 UTP 1000 ft

SKU
STCSV565UTPUL

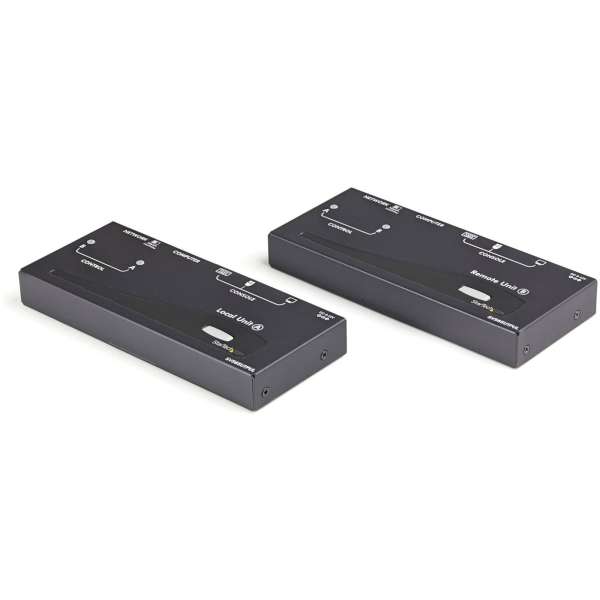

main product photo
$386.42 /EACH

Delivered in 2-4 business days

In stock
Only 10 left
  • High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA)
  • Kit includes both local and remote units
  • Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
  • USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
  • Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
  • Supports auto-switching between host and remote users or dedicated control
  • Compatible with CAT 5, 5e, or 6 UTP cabling
  • Intuitive hotkey commands
  • Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
  • Supports most combo keyboard and mouse sets (including Wireless)

2nd Day Delivery
On most orders

90 Days Return
Read Return Policy

Bulk Discounts!
Call 800-995-7539

Live Chat
Dedicated support
Category: KVM Switches

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away. You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.


Brand NameStarTech.com
Connectivity TechnologyWired
Country of OriginTaiwan
Environmental CertificationREACH
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form FactorDesktop
Form FactorRack-mountable
Graphic ModeWUXGA
Input Voltage Range110V AC to 240V AC
Input Voltage120 V AC
Input Voltage240 V AC
KVM TechnologyAnalog
Limited Warranty3 Year
Manufacturer Part NumberSV565UTPUL
ManufacturerStarTech.com
Maximum Operating Distance984.25 ft
Maximum Video Resolution1920 x 1200
Network (RJ-45)Yes
Number of Computers Supported2
Number of Local Users Supported1
Number of Network (RJ-45) Ports2
Number of Remote Users Supported1
Number of USB Ports4
Number of VGA Ports2
Package Contents
  • 2 x KVM Extenders (1x Local, 1x Remote)
  • 2 x 2n1 USB VGA KVM Cables
  • 1 x Rubber Feet
  • 1 x Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
  • 1 x User Manual
Power Consumption18 W
Product ColorBlack
Product NameUSB VGA KVM Console Extender over Cat5 UTP 1000 ft
Product TypeKVM Console/Extender
Receiver Depth2.80"
Receiver Height0.80"
Receiver Weight (Approximate)1.37 lb
Receiver Width6.20"
TAA CompliantYes
Transmitter Depth2.80"
Transmitter Height0.80"
Transmitter Weight (Approximate)1.37 lb
Transmitter Width6.20"
USBYes
VGAYes
UNSPSC43211603
Download PDF File
UPC065030839259
Weight (lbs)3.0500
MPNSV565UTPUL
Prop65 WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
BrandStarTech.com
