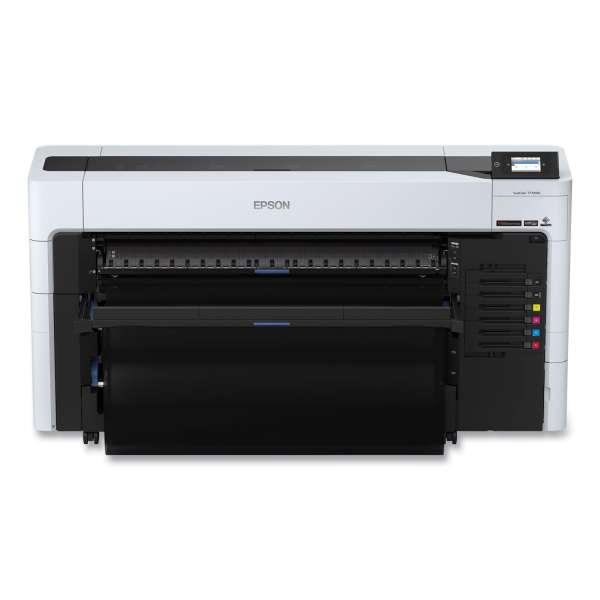

SureColor T7770DL 44-Inch Large-Format Dual-Roll CAD/Technical Printer
Delivered in 2-4 business days
- Incredible speed and performance; delivers crisp, detailed, colorful prints using a reliable 2.64" PrecisionCore MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds.
- The 1.6 L bulk ink pack system (ink sold separately) more than doubles the ink capacity of previous generations for improved efficiency and reduced cost of ownership.
- Innovative design fits almost any workflow and features a unique flattop design with complete front operation, simple automatic roll loading and dual roll/take-up reel integrated.
- Stunning image quality and precise line detail; vivid UltraChrome XD3 Ink with Red Ink produces crisp lines and vibrant colors for graphics, signage, blueprints, documents and more.
- Print on a variety of media, including glossy, technical, bond, matte and specialty media, and rigid posterboard up to 1.5 mm thick.
- Seamless, dual-roll productivity accommodates two media types or sizes, or use the second roll as a take-up reel for roll-to-roll production.
- Easy to use and maintain with a configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation.
- No assembly required so you can be up and printing in as little as 30 minutes.
Epson delivers a first-of-its-kind design that redefines speed, versatility and efficiency for its class: the SureColor T7770DL. Having the smallest footprint in its classup to 25% smaller than its competitionand full-front operation means the T7770DL fits where other printers don't. It's designed for outstanding quality, sharpness and speed, generating technical drawings at production-class speeds over 1,400 ft/hr2, A1/D-size prints in as little as 16 seconds, and graphics at speeds up to 300 ft2/hr. Its innovative UltraChrome XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. Built with a 1.6-liter bulk ink pack system (ink sold separately), this high-quality printer provides over double the ink capacity of previous generations for a remarkably low ink cost per milliliter, as well as helps minimize waste when compared to Epson SureColor T-Series cartridge systems. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less spaceall with a low total cost of ownership. Add it all up, and this is not just a one-of-a-kind printer: it's the new benchmark in high-speed CAD and graphics. Print Resolution (Black) (Width x Height): 2400 x 1200 dpi; Print Resolution (Color) (Width x Height): 2400 x 1200 dpi; B&W or Color Output: Color; Printing Type: Wide Format.
| Global Product Type | Wide Format Inkjet Printers |
|---|---|
| Print Resolution (Black) (Width x Height) | 2400 x 1200 dpi |
| Print Resolution (Color) (Width x Height) | 2400 x 1200 dpi |
| B&W or Color Output | Color |
| Printing Type | Wide Format |
| Model Name/Number | SureColor T7770DL |
| LCD Display (Yes/No) | Yes |
| Connector/Port/Interface | Ethernet; USB; Wi-Fi |
| Network Types | 10/100/1000Base-T Ethernet; 802.11 b/g/n Wireless |
| Wireless Printing | Yes |
| Network Ready | Yes |
| Network Capable | Yes |
| Maximum Paper Size | Up to 44" |
| Standard Memory | 4 GB |
| Maximum Memory | 4 GB |
| Operating System Compatibility | Mac OS X 10.9.5 and Later; MacOS 11 and Later; Windows XP, Server 2003, Server 2008, Vistaâ„¢, 7, 8, 8.1, 10, Server 2016; Server 2019 |
| Width | 73" |
| Depth | 32.6" |
| Height | 38.4" |
| Printers Carriage | Wide |
| Memory Card Compatibility | Yes |
| Borderless Printing | Yes |
| Roll Capacity | 2 |
| Wide Format Print Width | 44" |
| For Use With | Epson UltraChrome XD3 Inks |
| Product Biodegradability Indicator | N |
| Product Biodegradability in Days | 0 |
| Product Compostability Indicator | N |
| Package Includes | AC Power Cable; Borderless Maintenance Box; Maintenance Box; Start Here Poster; Two-Roll Media Adapter |
| Compliance Standards | Energy Star Rated |
| Pre-Consumer Recycled Content Percent | 0% |
| Post-Consumer Recycled Content Percent | 0% |
| Total Recycled Content Percent | 0% |
| Brand | Epson |
|---|---|
| Weight (lbs) | 430.0000 |
| UPC | 010343965201 |
| MPN | SCT7770DL |
