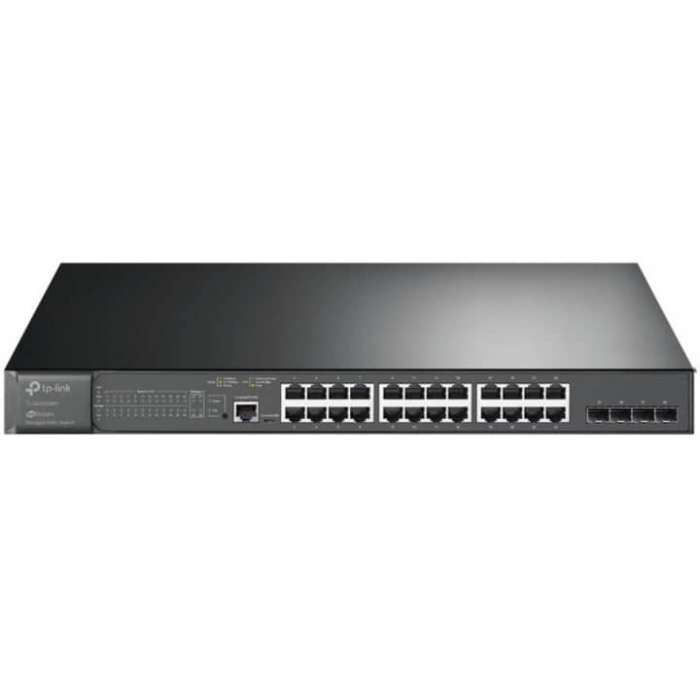

Tp Link TP-Link TL-SG3428MP, JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+, Limited Lifetime Warranty, 24 PoE+ Port @384W, 4 x SFP Slots
Delivered in 2-4 business days
- Flexible Full Gigabit 28-Port PoE Configuration: 24 PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE budget 384W, together w/ 4 x Gigabit SFP slots for high-speed connections.
- Integrated into Omada SDN: Omada Software Defined Networking platform integrates network devices, including switches, access points & gateways with multiple control options offered - Omada Hardware controller or Omada Software Controller. Standalone mode also applies.
- Cloud Access: Remote cloud access and Omada app brings centralized cloud management of the whole network from different sites-all controlled from a single interface anywhere, anytime.
- SDN Compatibility: Make sure your devices/controllers are equipped with SDN firmware. (Or upgradable). SDN controllers work only with SDN Access Points, Switches & Gateways. Non-SDN controllers work only with non-SDN APs. Details found on TP-Link website.
- Enhance Network Security: Advanced security features include 802.1Q VLAN, IP-MAC-Port binding, ACL, Port Security, DoS defend, Storm control, DHCP Snooping, 802.1X radius authentication and more.
Convenient Gigabit Switch with 24-Port PoE+ for a Complete Omada Network. JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+. TL-SG3428MPPoE+ Output. 24× Gigabit PoE+ Ports with Total 384 W Power Budget. Centralized Cloud Management. SDN Solutions Integration for a Highly Efficient Network. Robust Security Strategies. LAN Area Investment Protection. Advanced L2+ Features. Static Routing, IGMP Snooping 802.1 Q VLAN and MoreDedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications. Features 24× 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. Software Defined Networking (SDN) with Cloud Access. Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network- all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Secure Networking. Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.Advanced QoS. Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. Abundant L2 and L2+ Features. A complete lineup of L2 features are supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.ISP Features. sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 Support. IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
| Brand Name | TP-Link |
|---|---|
| Country of Origin | China |
| Depth | 13" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type (I/O Expansions) | SFP (mini-GBIC) |
| Expansion Slot Type | SFP (mini-GBIC) |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.7" |
| Layer Supported | 2 |
| Manageable | Yes |
| Manufacturer Part Number | TL-SG3428MP |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Modular (Interfaces/Ports) | Yes |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-X |
| Number of SFP Slots (I/O Expansions) | 4 |
| Number of Total Expansion Slots (I/O Expansions) | 4 |
| Number of Total Expansion Slots | 4 |
| Package Contents | JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+; Power Cord; Quick Installation Guide; Rackmount Kit; Rubber Feet |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 384 W |
| Port/Expansion Slot Details (Interfaces/Ports) | 24 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details (Interfaces/Ports) | 4 x Gigabit Ethernet Expansion Slot |
| Power Consumption | 34.40 W |
| Power Source | Power Supply |
| Product Family | JetStream |
| Product Line | JetStream |
| Product Model | TL-SG3428MP |
| Product Name | JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+ |
| Product Type | Ethernet Switch |
| Shared SFP Slot (I/O Expansions) | No |
| Total Number of Network Ports (Interfaces/Ports) | 24 |
| Total Number of Network Ports | 24 |
| Width | 17.3" |
| Brand | TP-Link |
|---|---|
| Weight (lbs) | 12.0000 |
| UPC | 845973010157 |
| MPN | TL-SG3428MP |
