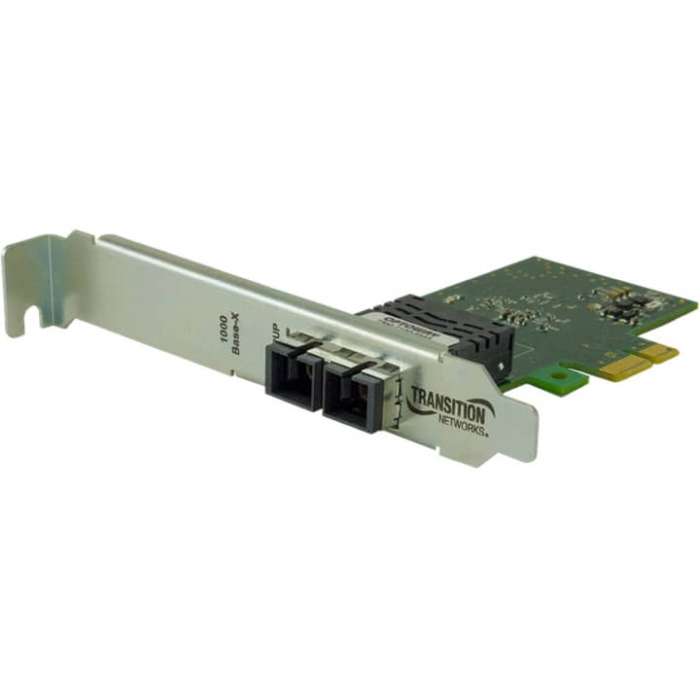

Transition Networks N-GXE-LC-02 Gigabit Ethernet Card, PCI Express 2.1 x1, Optical Fiber, 1000Base-SX, Plug-in Card
SKU
INGM5KA570
by Lantronix
$292.84 /EACH
Delivered in 2-4 business days
In stock
Only 4 left
- Full Wake-on-LAN Support.
- Smart Load Balancing (SLB) and Failover.
- Link Aggregation Smart Switch.
- IEEE 802.1Q VLAN Support.
- Link Aggregation Control Protocol (LACP).
- Compliant with PCIe Rev 2.1 Interface.
- Supports IEEE 802.3x and IEEE 802.3z FullDuplex Flow Control.
- Supports full-duplex mode.
- Supports PCIe x1 bus.
- High bandwidth 1000 Mbps network speed (100/1000 Mbps with AutoNegotiation for SFP version) .
Category: Network Interface Cards
The N-GXE-xx-02 Series is a Fiber Gigabit Ethernet to PCIe bus adapter that fully complies with all IEEE 802.3z and 1000Base-SX standards. It provides up to 2000 Mbps fullduplex bandwidth capacity to support high-end servers. In addition, with advanced functions like VLAN filtering packet processing, link aggregation, smart load balancing, failover, and Wake-on-LAN, the adapter provides enhanced performance, flexible configuration and secure networking for users in a standard-based environment. An LED indicator on the bracket displays link status, activity and speed.
| Brand Name | Transition Networks |
|---|---|
| Country of Origin | Taiwan |
| Depth | 4.1" |
| Device Supported | Computer/Server |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Plug-in Card |
| Height | 2.2" |
| Host Interface (Interfaces/Ports) | PCI Express 2.1 x1 |
| Host Interface | PCI Express 2.1 x1 |
| Manufacturer Part Number | N-GXE-LC-02 |
| Manufacturer | Transition Networks, Inc |
| Media Type Supported | Optical Fiber |
| Network Technology | 1000Base-SX |
| Package Contents | N-GXE-LC-02 Gigabit Ethernet Card; Low-Profile Bracket |
| Product Family | N-GXE-xx-02 |
| Product Model | N-GXE-LC-02 |
| Product Name | N-GXE-LC-02 Gigabit Ethernet Card |
| Product Series | N-GXE-xx-02 |
| Product Type | Gigabit Ethernet Card |
| Weight (Approximate) | 8.80 oz |
| UPC | 0648177042111 |
|---|---|
| Weight (lbs) | 0.4000 |
| MPN | N-GXE-LC-02 |
| Brand | Lantronix |
