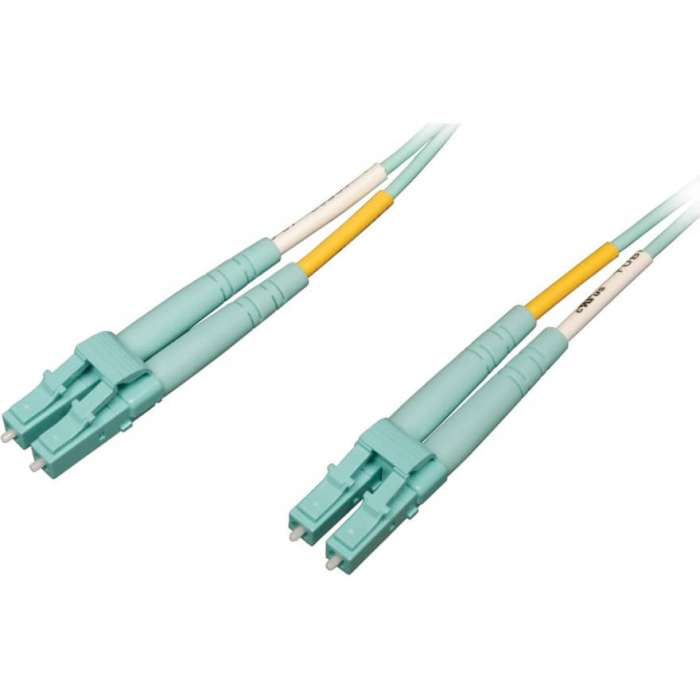

Tripp Lite 10Gb/100Gb Duplex Multimode LC/LC OM4 Aqua Fiber Patch Cable 15M, Fiber Optic for Network Device, 12.50 GB/s, Patch Cable, 49.21 ft
Delivered in 2-4 business days
- Dual male LC connectors meet insertion loss standards.
- 50/125 duplex glass fiber construction.
- Low-smoke zero-halogen aqua jacket.
- Nearly 10x the bandwidth of conventional 62.5 um multimode fiber.
- 40/100 Gb Ethernet speed up to 300 m (@ 850 nm) .
The N820-15M-OM4 10 Gb/100 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 40/100 Gb Ethernet applications up to 300 meters (@ 850 nm). For fast, clear signal transmission through your local area network (LAN) or storage area network (SAN), this high-speed, low-cost cable provides three times more bandwidth than conventional 62.5 m multimode fiber and performance rivaling that of singlemode cable.Backward compatible with existing 50/125 fiber, the aqua-colored N820-15M-OM4 is manufactured using top-quality materials. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. It has 50/125 duplex (zipcord) fiber made from glass and a low-smoke zero-halogen (LSZH) jacket, which limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas. This laser-optimized multimode fiber (LOMMF) cable is ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. It's commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. Complies with IEEE 802.3ae and TIA LOMMF standards.
| Brand Name | Tripp Lite |
|---|---|
| Cable Characteristic | Patch Cable |
| Cable Length | 49.20 ft |
| Cable Type | Fiber Optic |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Core/Cladding Diameter | 50/125 m |
| Country of Origin | China |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Fiber Optic Mode | Multi-mode |
| Jacket Color | Aqua |
| Manufacturer Part Number | N820-15M-OM4 |
| Manufacturer | Tripp Lite by Eaton |
| Product Model | N820-15M-OM4 |
| Product Name | N820-15M-OM4 Fiber Optic Duplex Network Cable |
| Product Type | Network Cable |
| Download PDF File |
| Brand | Tripp Lite |
|---|---|
| Weight (lbs) | 0.2500 |
| UPC | 037332178534 |
| MPN | N820-15M-OM4 |
