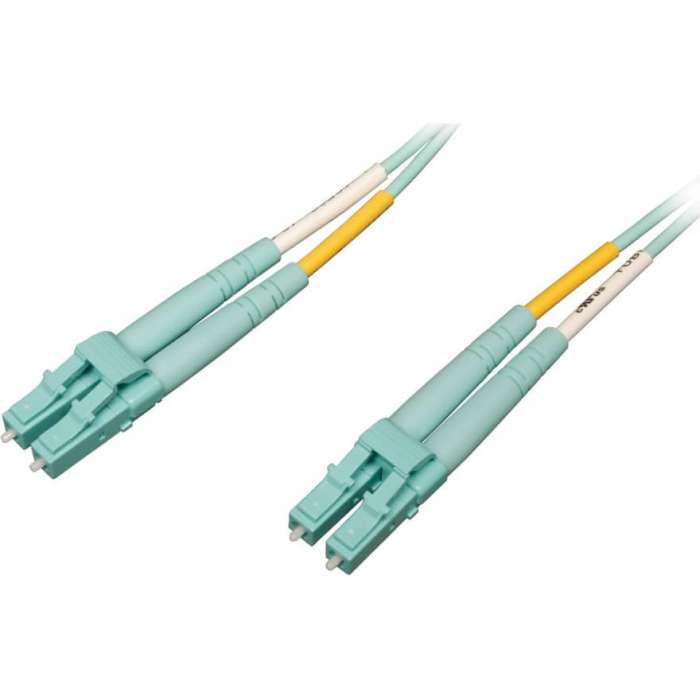

Tripp Lite 10Gb/100Gb Duplex Multimode LC/LC OM4 Aqua Fiber Patch Cable 20M - Fiber Optic for Network Device - 12.50 GB/s - Patch Cable - 65.62 ft - 2 x LC Male Network - 2 x LC Male Network - 50/125 m - Aqua

SKU
INGM1R1385
$74.58 /EACH

Delivered in 2-4 business days

Out of stock
  • 40/100 Gb Ethernet speed up to 300 m (@ 850 nm)
  • Nearly 10x the bandwidth of conventional 62.5 um multimode fiber
  • 50/125 duplex glass fiber construction
  • Low-smoke zero-halogen aqua jacket
  • Dual male LC connectors meet insertion loss standards

The N820-20M-OM4 10 Gb/100 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 40/100 Gb Ethernet applications up to 300 meters (@ 850 nm). For fast, clear signal transmission through your local area network (LAN) or storage area network (SAN), this high-speed, low-cost cable provides three times more bandwidth than conventional 62.5 m multimode fiber and performance rivaling that of singlemode cable. Backward compatible with existing 50/125 fiber, the aqua-colored N820-20M-OM4 is manufactured using top-quality materials. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. It has 50/125 duplex (zipcord) fiber made from glass and a low-smoke zero-halogen (LSZH) jacket, which limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas. This laser-optimized multimode fiber (LOMMF) cable is ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. It's commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. Complies with IEEE 802.3ae and TIA LOMMF standards.


Cable Length 65.60 ft
Product Type Network Cable
Brand Name Tripp Lite
Cable Characteristic Patch Cable
Cable Type Fiber Optic
Connector Type on First End LC Network - Male
Connector Type on Second End LC Network - Male
Fiber Optic Mode Multi-mode
Download PDF File
BrandTripp Lite
Weight (lbs)0.3000
UPC0037332190802
MPNN820-20M-OM4
