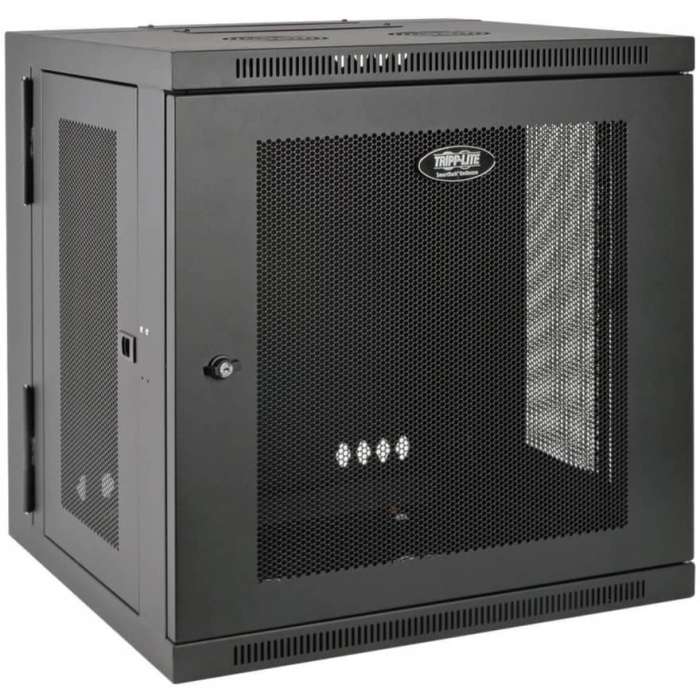

Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep, For UPS, 12U Rack Height x 19" Rack Width x 24.50" Rack Depth, Wall Mountable, Black
Delivered in 2-4 business days
- Secures 12U of 19 in. rack equipment up to 24.5 in. deep.
- Flow-through ventilation keeps equipment cool.
- Locking steel cabinet vented at sides, front, top and bottom.
- Maximum load capacity of 200 lb..
- Swings away from wall on hinge for easy back-door access .
The SRW12USDP SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180 before mounting. Convenient top and bottom ports allow easy cable routing.The SRW12USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
Application/Usage | UPS |
---|---|
Assembly Required | No |
Brand Name | Tripp Lite |
Country of Origin | China |
Depth | 25.5" |
Environmental Certification | RoHS |
Environmentally Friendly | Yes |
Form Factor | Wall Mountable |
Height | 25.1" |
Manufacturer Part Number | SRW12USDP |
Manufacturer | Tripp Lite by Eaton |
Maximum Weight Capacity | 200 lb |
Package Contents | SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back; 20 x M6 Screws; 20 x M6 Cage Nuts; 20 x M6 Washers; 20 x12-24 Screws; 2 x Keys; Owner's Manual |
Product Color | Black |
Product Family | SmartRack |
Product Line | SmartRack |
Product Model | SRW12USDP |
Product Name | SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back |
Product Type | Rack Cabinet |
Rack Depth | 24.50" |
Rack Height | 12U |
Rack Width | 19" |
Static/Stationary Weight Capacity | 200 lb |
Weight (Approximate) | 63.50 lb |
Width | 23.6" |
Download PDF File |
UPC | 037332189691 |
---|---|
Weight (lbs) | 75.8000 |
MPN | SRW12USDP |
Brand | Tripp Lite |
