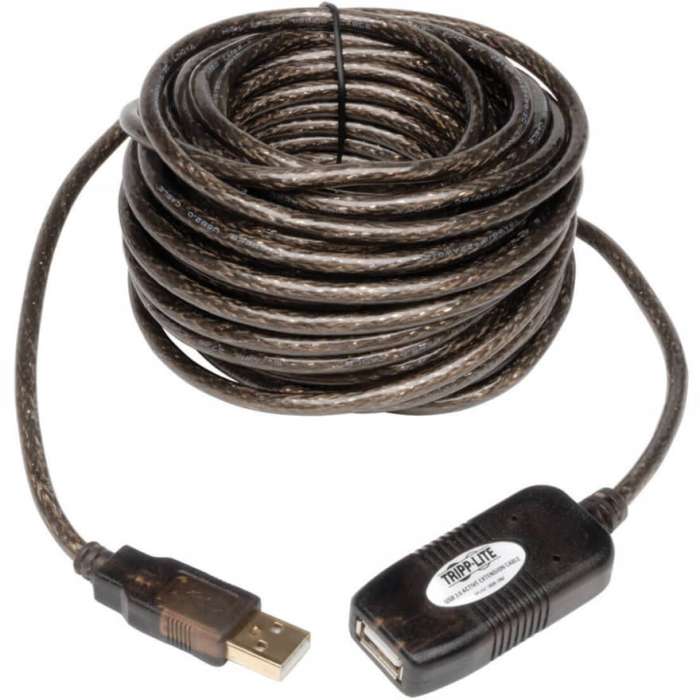

Tripp Lite 16ft USB 2.0 A/A Active Extension Cable USB-A Male / Female 16', Type A Male USB, Type A Female USB, 16ft
SKU
INGMD77685
by Tripp Lite
$21.54 /EACH
Delivered in 2-4 business days
In stock
- Extend a USB 2.0 signal passed the 16-ft. (4.88 m) distance limitation
- Works together with standard USB 2.0 cables
- Bus powered signal booster
- Daisychain up to 5 cables to extend the signal up to 80-ft. (24.38 m) passed the 16-ft. (4.88 m) distance limitation
- The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016.
Category: Data & Communication Cables
Tripp Lite's 16-ft. USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 80ft by daisy chaining up to 5 of these active cables. The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016. Use a standard 6' 10' or 15' USB cable to reach the desired distance.
| American Wire Gauge | 28/22 AWG |
|---|---|
| Brand Name | Tripp Lite |
| Cable Characteristic | Extension Cable |
| Cable Length | 16 ft |
| Cable Type | USB |
| Compatibility | USB Hub |
| Conductor | Copper |
| Connector on First End Details | 1 x USB 2.0 Type A - Male |
| Connector on Second End Details | 1 x USB 2.0 Type A - Female |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector Type on Second End | USB 2.0 Type A - Female |
| Contact Plating | Gold |
| Country of Origin | China |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Active |
| Features | Double Shielded |
| Jacket Color | Black |
| Manufacturer Part Number | U026-016 |
| Manufacturer | Tripp Lite by Eaton |
| Package Contents | USB 2.0 Extension Cable; 16-ft. USB AA 2.0 Certified Active Extension Cable USB-A F/M |
| Product Color | Black |
| Product Model | U026-016 |
| Product Name | USB 2.0 Active Extension Repeater Cable (A M/F), 16 ft. (4.88 m) |
| Product Type | Data Transfer Cable |
| Shielding Material | Aluminum Mylar Foil |
| Shielding Material | Tinned Copper Braid |
| Shielding | Yes |
| Download PDF File |
| UPC | 037332120588 |
|---|---|
| Weight (lbs) | 0.4400 |
| MPN | U026-016 |
| Brand | Tripp Lite |
