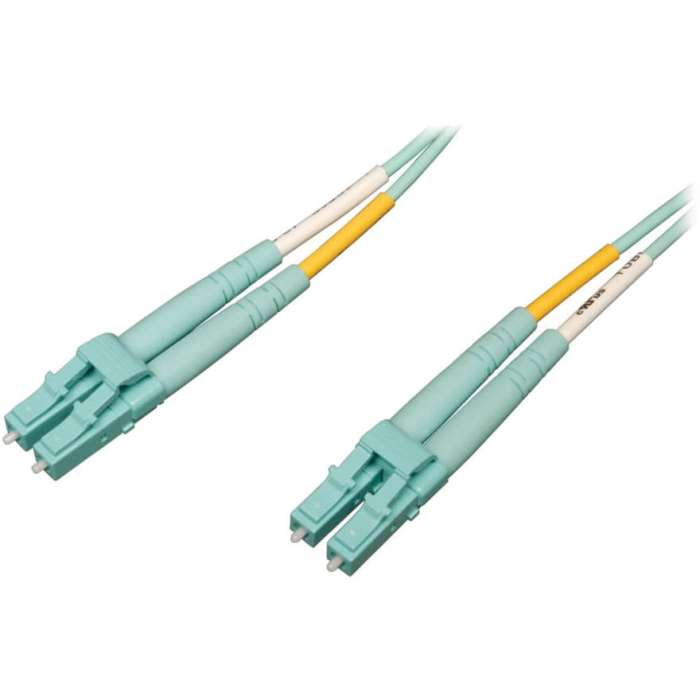

Tripp Lite 1M 10Gb/100Gb Duplex Multimode 50/125 OM4 Fiber Cable LC/LC Aqua, LSZH Fiber Patch Cable (LC/LC), Aqua, 1M (3-ft.)
Delivered in 2-4 business days
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket.
- Backward compatible with existing 50/125 fiber.
- Max 40/100Gb distance of 300 meters @850nm.
- Designed for 40/100-Gig Ethernet applications...OM4 Rated .
Tripp Lite's new OM4 enter it-Optimized Multimode Fiber Laser (LOMMF) "Aqua" cables, For Use With 40/100Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. These new technology, 50/125um, LC / LC Fiber Optic cables, three times the Provide Nearly bandwidth multimode fiber over 62.5um Conventional, With performance rivaling That of Singlemode cable, at a much reduced cost. LOMMF cable allows 40/100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. Cable LOMMF allows serial transmission over extended 40/100Gb distances in the 850nm wavelength window, where, low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Ideally suited for LOMMF is LAN's, SAN's, and high-speed parallel Interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.
| Brand Name | Tripp Lite |
|---|---|
| Cable Characteristic | Patch Cable |
| Cable Length | 3.30 ft |
| Cable Type | Fiber Optic |
| Certifications & Standards | OM4 Rated; TIA LOMMF |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Core/Cladding Diameter | 50/125 m |
| Country of Origin | China |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Fiber Optic Mode | Multi-mode |
| Jacket Type | LSZH |
| Manufacturer Part Number | N820-01M-OM4 |
| Manufacturer | Tripp Lite by Eaton |
| Product Color | Seawater |
| Product Model | N820-01M-OM4 |
| Product Name | N820-01M-OM4 Fiber Optic Duplex Patch Cable |
| Product Type | Network Cable |
| Download PDF File |
| UPC | 037332165213 |
|---|---|
| Weight (lbs) | 0.0500 |
| MPN | N820-01M-OM4 |
| Brand | Tripp Lite |
