Tripp Lite SmartOnline 120V 3kVA 2.7kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, Network Card Slot, LCD, USB, DB9 Serial, 2U Rack/Tower, 3 Hour Recharge, 4.10 Minute Stand-by, 127 V AC Input

SKU
INGMUU8129
$2,635.57 /EACH

Delivered in 2-4 business days

Out of stock

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Up to 99% efficiency with economy mode option saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Frequency regulation and conversion options for all 50/60Hz applications. Programmable self-test. Battery independent restart. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.


AlarmLow Battery
AlarmOverload
AlarmPower Failure
AlarmRemote Shutdown
AlarmUPS Fault
Backup/Run Time (Full Load)4.10 Minute
Backup/Run Time (Half Load)11.30 Minute
Battery ChemistryLead Acid
Battery Life6 Year
Brand NameTripp Lite
Certifications & StandardsUL1778; CSA; FCC Part 15 Category A (EMI)
Circuit BreakerYes
Cord Length10 ft
Country of OriginChina
Depth25.5"
Emergency Power OFFYes
Environmental CertificationRoHS
Environmentally FriendlyYes
Form FactorRack/Tower
Height3.4"
Hot SwappableYes
Input Voltage127 V AC
Load Capacity (VA)3000 VA
Load Capacity (W)2700 W
Manufacturer Part NumberSU3000RTXLCD2U
ManufacturerTripp Lite by Eaton
Maximum Operating Temperature104°F (40°C)
Network ManagementSNMP Manageable
Output Voltage127 V AC

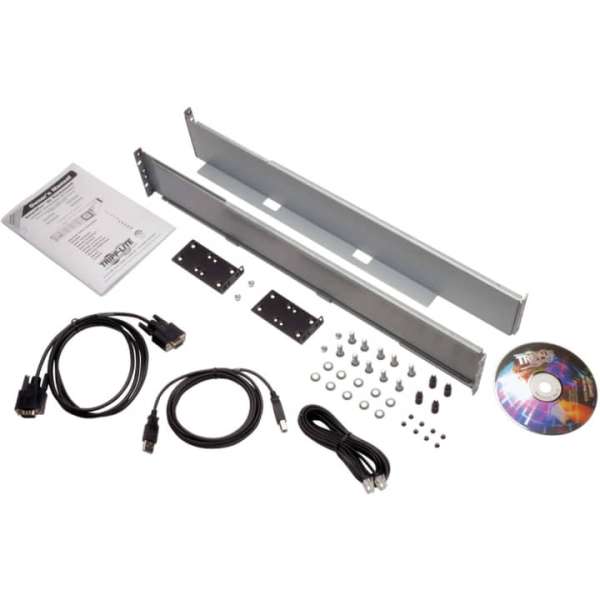

Package ContentsSmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS; PowerAlert UPS Monitoring Software CD; USB Cable; DB9 Cable
Plug/Connector TypeNEMA L5-30P
Product FamilySmartOnline
Product LineSmartOnline
Product ModelSU3000RTXLCD2U
Product NameSmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS
Product TypeDouble Conversion Online UPS
Protection TypeBrownout
Protection TypeOver Voltage
Protection TypeUnder Voltage
Rack Height2U
Receptacle Detail1 x NEMA L5-30R
Receptacle Detail4 x NEMA 5-15/20R
Receptacle Detail4 x NEMA 5-15R
Receptacle TypeNEMA 5-15/20R
Receptacle TypeNEMA 5-15R
Receptacle TypeNEMA L5-30R
Serial Port (Interfaces/Ports)Yes
Software IncludedPowerAlert UPS Monitoring Software
Sound Emission (A-Weighted)50 dB(A)
Status Indicators (Controls/Indicators)7 Front Panel Leds Indicate Line Power Availability; AC to DC Conversion; Battery Mode Operation; Inverter Mode; Eco Mode Operation; Bypass Mode Operation; AC Output Status
Surge Energy Rating570 J
Thermal Dissipation234.75 W
Typical Battery Recharge Time3 Hour
USB (Interfaces/Ports)Yes
Waveform TypePure Sine Wave
Weight (Approximate)70.50 lb
Width17.3"
Download PDF File
UPC037332180100
Weight (lbs)92.0000
MPNSU3000RTXLCD2U
BrandTripp Lite
