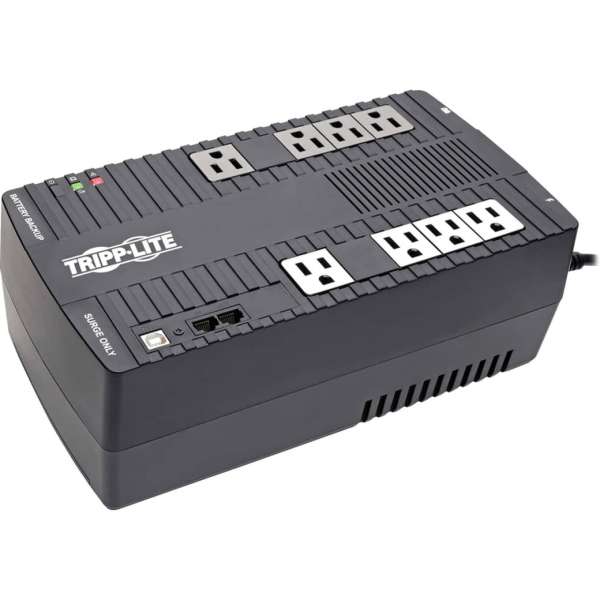

Tripp Lite UPS 550VA 300W Desktop Battery Back Up AVR Compact 120V USB RJ11 50/60Hz, Mini Desktop, 9 Hour Recharge, 2 Minute Stand-by, 110 V AC Input
SKU
INGMH29909
by Tripp Lite
$116.35 /EACH
Delivered in 2-4 business days
In stock
Only 6 left
- 3-year limited warranty.
- $100,000 Ultimate Lifetime Insurance.
- High >95% efficiency with low BTU ratings saves electricity and lowers your energy costs.
- Home-friendly alarm remains silent in backup mode, sounding only when imperative.
- 8 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment.
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise .
Category: UPS & Accessories
AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
| Additional Information | Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher; High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less; Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure; Switches: Combination power off / on / self-test push button switch; Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices.; WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications; Supports entry-level PC systems up to 17 minutes during blackout conditions; Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation; 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets; 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power; 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support; HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux |
|---|---|
| Additional Warranty Information | 2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only). |
| Alarm | Battery Backup |
| Alarm | Fault |
| Alarm | Low Battery |
| Alarm | Overload |
| Alarm | Replace Battery |
| Application/Usage | ATM |
| Application/Usage | Blu-ray Player |
| Application/Usage | Computer |
| Application/Usage | Digital Signage |
| Application/Usage | Gaming Console |
| Application/Usage | Home Theater |
| Application/Usage | Home/Office |
| Application/Usage | Media Center |
| Application/Usage | Printer |
| Application/Usage | Router |
| Application/Usage | Security System |
| Application/Usage | Speaker |
| Application/Usage | TV |
| Assembly Required | No |
| AVR | Yes |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Battery Life | 6 Year |
| Brand Name | Tripp Lite |
| Certifications & Standards | Tested to UL1778 (USA); cUL1778 (Canada); NOM (Mexico); FCC Class B (Emissions); FCC Part 68; Industry Canada (Telecommunications) |
| Cold Start | Yes, inverter can be "cold started" to enable temporary AC output during a power failure |
| Cord Length | 6 ft |
| Country of Origin | Vietnam |
| Dataline Protection | RJ-11 |
| DC System Voltage | 12 V DC |
| Depth | 12" |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Environmental Certification | RoHS |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Form factors supported | Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation |
| Height | 4.3" |
| High voltage transfer to battery power | Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less |
| Input Current | 12 A |
| Input Frequency | 60 Hz |
| Input Voltage | 120 V AC |
| Load Capacity (VA) | 550 VA |
| Load Capacity (W) | 300 W |
| Low voltage transfer to battery power | Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher |
| Manufacturer Part Number | AVR550U |
| Manufacturer | Tripp Lite by Eaton |
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 104F (40C) |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Output Frequency | 60 Hz |
| Output Voltage | 110 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Package Contents | AVR 550VA Desktop UPS; USB cable; Owner's manual |
| Packaged Quantity | 1 Each |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Product Color | Black |
| Product Family | AVR |
| Product Model | AVR550U |
| Product Name | AVR 550VA Desktop UPS |
| Product Series | AVR |
| Product Type | Line-interactive UPS |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Recycled | No |
| Replaceable Battery | Yes |
| Software Included | PowerAlert UPS monitoring software |
| Status Indicators (Controls/Indicators) | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
| Surge Energy Rating | 316 J |
| Switches | Combination power off / on / self-test push button switch |
| Transfer Time | 6 ms |
| Typical Application | Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices. |
| Typical Battery Recharge Time | 8 Hour |
| USB (HID Compliant) Port (Interfaces/Ports) | Yes |
| USB (Interfaces/Ports) | Yes |
| WatchDog compatibility | Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Weight (Approximate) | 13.69 lb |
| Width | 6.4"| |
| Download PDF File |
| Weight (lbs) | 11.5500 |
|---|---|
| Brand | Tripp Lite |
| UPC | 037332211453 |
| MPN | AVR550U |
