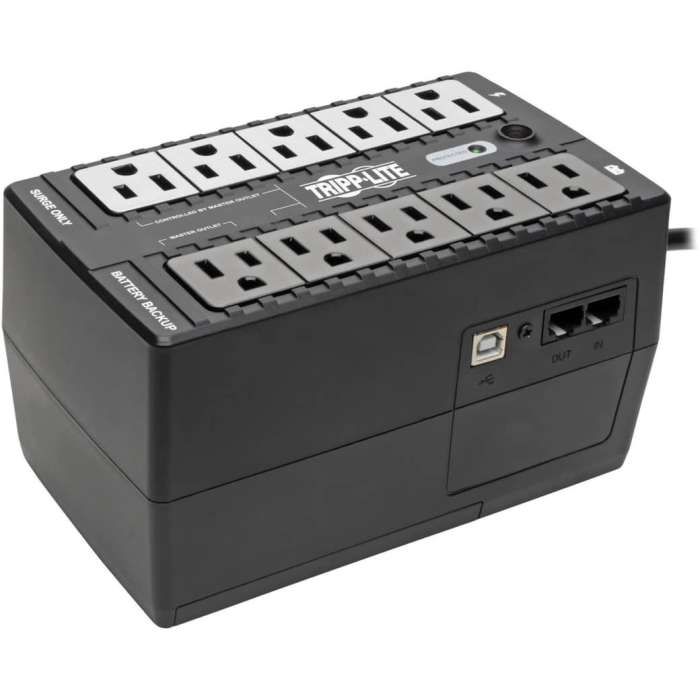

Tripp Lite UPS 550VA 300W Eco Green Battery Back Up Compact 120V USB RJ11, Desktop, Wall Mountable, 15 Hour Recharge, 1.20 Minute Stand-by, 120 V AC Input
Delivered in 2-4 business days
- $100,000 Ultimate Lifetime Insurance.
- 3-year limited warranty.
- ENERGY STAR Version 2.0 qualified.
- NEMA 5-15P input plug and 8 NEMA 5-15R outlets.
- USB, TEL/DSL protection, Wall mountable, Surge-only outlets.
- ECO option turns off set of three outlets when the computer is not in use.
- Maintains AC output during power failures, 99% line mode efficiency.
- 550VA ultra-compact 120V standby UPS, energy-saving ECO outlets .
Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes four battery-supported outlets for computer, monitor and two vital system peripherals, plus four additional surge suppression-only outlets for accessories not requiring battery support. Three of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 550VA/300-watt power handling ability supports entry-level PC systems for up to 17 minutes during power fail conditions.
| Additional Information | Keyhole mounting slots enable wall-mount installation; Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications; Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher; Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decerases to 135V or lower; Basic desktop PCs for home/home-office use, network terminals, audio/video and home entertainment systems and other sensitive electronic devices; 550VA / 300 watt UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 17 minutes |
|---|---|
| Additional Warranty Information | 2 year $100,000 connected equipment guarantee |
| Alarm | Low Battery |
| Alarm | On Battery |
| Alarm | Overload |
| Assembly Required | No |
| Backup/Run Time (Full Load) | 1.20 Minute |
| Backup/Run Time (Half Load) | 5 Minute |
| Battery Life | 6 Year |
| Brand Name | Tripp Lite |
| Certifications & Standards | Tested to :; UL1778 (USA); CSA (Canada); NOM (Mexico); Class B (EMI); FCC Part 68 / Industry Canada (telecommunication) |
| Cord Length | 6 ft |
| Country of Origin | Vietnam |
| Dataline Protection | RJ-11 |
| Depth | 10.9" |
| Environmental Certification | ENERGY STAR 2.0 |
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Height | 3.1" |
| Input Voltage | 120 V AC |
| Load Capacity (VA) | 550 VA |
| Load Capacity (W) | 300 W |
| Manufacturer Part Number | ECO550UPS |
| Manufacturer | Tripp Lite by Eaton |
| Maximum Operating Temperature | 122F (50C) |
| Output Voltage | 110 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Package Contents | 550VA Standby UPS; ECO550UPS UPS System; USB Cable; Instruction manual with warranty information |
| Packaged Quantity | 1 Each |
| Plug/Connector Type | NEMA 5-15P |
| Product Color | Black |
| Product Family | ECO |
| Product Model | ECO550UPS |
| Product Name | ECO550UPS 550VA Desktop UPS |
| Product Series | ECO |
| Product Type | Standby UPS |
| Protection Type | Brownout |
| Protection Type | EMI / RFI |
| Protection Type | Power Failure |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Recycled | No |
| Software Included | PowerAlert software available via free download |
| Sound Emission | 40 dB |
| Status Indicators (Controls/Indicators) | 2 LED Indicator:; Line power; Battery power statusMain Power Switch Controls :; ON; OFF; SELF-TEST; ALARM CANCEL; Second switch enables "ECO" outlet switching |
| Surge Energy Rating | 420 J |
| Thermal Dissipation | 1.17 W |
| Typical Battery Recharge Time | 15 Hour |
| USB (Interfaces/Ports) | Yes |
| Waveform Type | Sine Wave |
| Weight (Approximate) | 6.60 lb |
| Width | 5.7" |
| Download PDF File |
| UPC | 0037332211064 |
|---|---|
| Weight (lbs) | 4.9500 |
| MPN | ECO550UPS |
| Brand | Tripp Lite |
