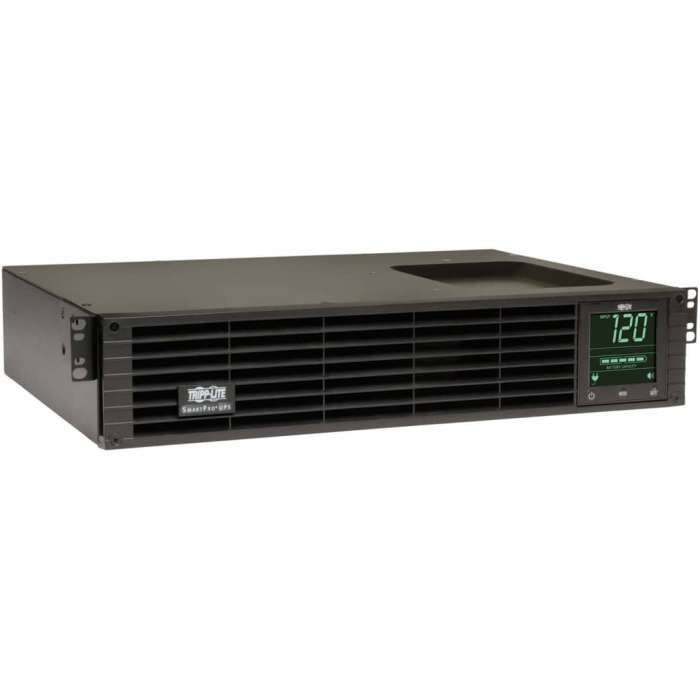

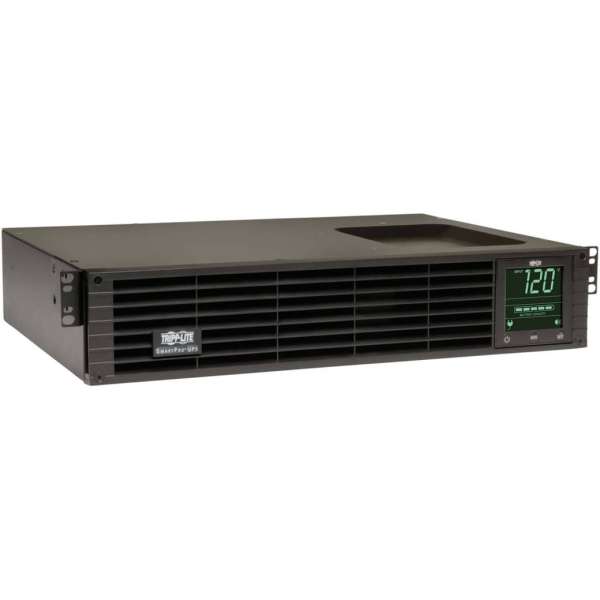

Tripp Lite UPS Smart 1500VA 1350W Rackmount AVR 120V Preinstalled WEBCARDLX Pure Sine Wave USB DB9 Extended Run 2URM, 1500 VA/1350 W, 120 V AC, 4.90 Minute Stand-by Time, 2U Rack-mountable
Delivered in 2-4 business days
- Corrects under- and overvoltages from 83V to 145V
- 8 NEMA 5-15R outlets-4 switchable via network interface
- Pre-installed WEBCARDLX network interface
- Expandable runtime with optional external battery packs
- 14 min. runtime at half load; 4.9 min. at full load
Protects Mission-Critical Rack-Mounted Equipment; Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware; Audible alarm signals loss of utility power, overload, low battery and fault conditions; 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input; 0.9 power factor rating; 570-joule surge suppression rating Reliable Battery Backup with Expandable Runtime; Supports half load up to 14 min. and full load up to 4.9 min.; Internal batteries designed for hot-swap field replacement; 95% line-power efficiency rating saves money in energy costs; Expandable runtime with optional external battery packs, such as Tripp Lite's BP36V15-2U Pre-Installed WEBCARDLX Network Interface; Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH; Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status Reduce Service Calls with Auto Probe Autonomous Device Management; Auto Probe feature (Firmware 15.5.2 and greater) of the LX Platform Interface checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA) 8 NEMA 5-15R Outlets in 2 Load Banks; 4 outlets are switchable to remotely reboot equipment or shed nonessential loads Automatic Voltage Regulation (AVR); Maintains 120V nominal output over input range of 83V-145V without using battery power EMI/RFI Line Noise Filtering; Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance Interactive LCD Screen; Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes; Rotates for easy viewing in rack-mount or tower configurations Communications Ports; USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software (available via free download from www.tripplite.com/poweralert); EPO port supports emergency shutdown in large facilities Versatile Installation Options; Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack; Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory; Mounts in upright tower position with optional 2-9USTAND accessory
| Backup/Run Time (Full Load) | 4.90 Minute |
|---|---|
| Backup/Run Time (Half Load) | 14 Minute |
| Brand Name | Tripp Lite |
| Certifications & Standards | UL1778; CSA; NOM; FCC Part 15 Category B (EMI) |
| Country of Origin | China |
| Depth | 13.5" |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (W) | 1350 W |
| Manufacturer Part Number | SMART1500RMXLN |
| Manufacturer | Tripp Lite by Eaton |
| Network Management | SNMP Manageable |
| Output Voltage | 120 V AC |
| Package Contents | SmartPro SMART1500RMXLN 1.5kVA Rack-mountable UPS; PowerAlert Software CD; USB Cable; Serial Cable; EPO Cable; 4 Post Installation Kit; Owner's Manual; Network Interface Card |
| Plug/Connector Type | NEMA 5-15P |
| Product Family | SmartPro |
| Product Line | SmartPro |
| Product Model | SMART1500RMXLN |
| Product Name | SmartPro SMART1500RMXLN 1.5kVA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Serial Port (Interfaces/Ports) | Yes |
| Software Included | PowerAlert Software |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 4.50 Hour |
| USB (Interfaces/Ports) | Yes |
| Weight (Approximate) | 46.50 lb |
| Width | 17.3" |
| Download PDF File |
| UPC | 0037332178022 |
|---|---|
| Weight (lbs) | 55.0000 |
| MPN | SMART1500RMXLN |
| Brand | Tripp Lite |
