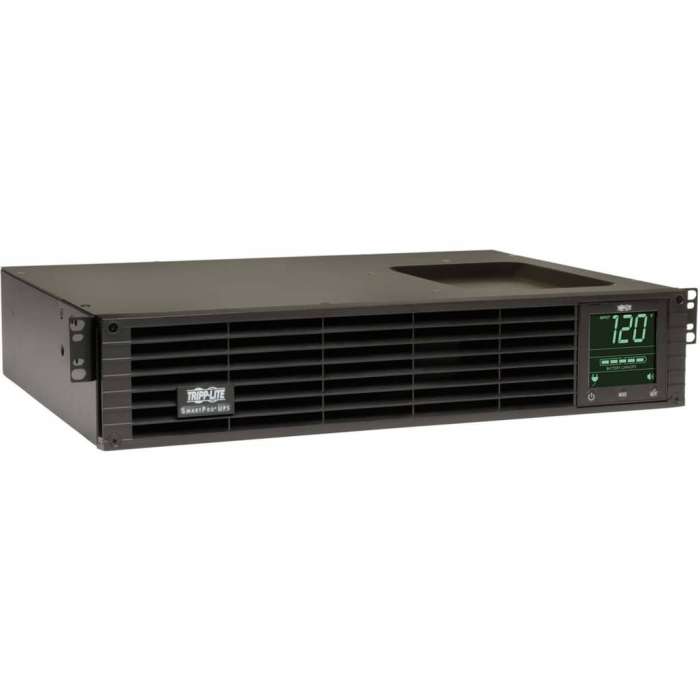

Tripp Lite UPS Smart 1500VA 1350W Rackmount AVR 120V Pure Sine Wave USB DB9 Preinstalled WEBCARDLX 2URM, 1500 VA/1350 W, 120 V AC, 4.50 Minute Stand-by Time, 2U Tower/Rack Mountable

SKU
INGMQW7994
$1,248.69 /EACH

Delivered in 2-4 business days

In stock
  • Corrects under- and overvoltages from 83V to 147V
  • 8 NEMA 5-15R outlets-4 switchable via network interface
  • Pre-installed WEBCARDLX network interface for remote management
  • Interactive LCD monitoring screen
  • 13 min. runtime at half load; 4.5 min. at full load

The SMART1500RM2UN SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SMART1500RM2UN switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss. Featuring eight NEMA 5-15R outlets (four switchable) and a 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input, the SMART1500RM2UN has an internal battery that provides 13 minutes of support at half load and 4.5 minutes at full load. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage..


Application/UsageServer
Application/UsageStorage Device
Application/UsageTelecommunication
Backup/Run Time (Full Load)4.50 Minute
Backup/Run Time (Half Load)13 Minute
Brand NameTripp Lite
Certifications & StandardsUL1778; CSA; NOM; FCC Part 15 Category B (EMI)
Country of OriginChina
Depth13.5"
Emergency Power OFFYes
Form FactorRack/Tower
Height3.5"
Hot SwappableYes
Input Voltage120 V AC
Load Capacity (VA)1500 VA
Load Capacity (W)1350 W
Manufacturer Part NumberSMART1500RM2UN
ManufacturerTripp Lite by Eaton
Network ManagementSNMP Manageable
Output Voltage110 V AC
Output Voltage115 V AC
Output Voltage120 V AC
Package ContentsSMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD; Pre-installed WEBCARDLX network interface; USB cable; DB9 cable; EPO cable; Mounting hardware; Owner's manual
PhaseSingle Phase
Plug/Connector TypeNEMA 5-15P
Product FamilySmartPro
Product LineSmartPro
Product ModelSMART1500RM2UN
Product NameSMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD
Product TypeLine-interactive UPS
Rack Height2U
Receptacle Detail8 x NEMA 5-15R
Receptacle TypeNEMA 5-15R
Serial Port (Interfaces/Ports)Yes
Software IncludedPowerAlert Software
TAA CompliantYes
Transfer Time4 ms
Typical Battery Recharge Time4.50 Hour
USB (Interfaces/Ports)Yes
Waveform TypePure Sine Wave
Weight (Approximate)46.50 lb
Width17.3"
Download PDF File
UPC037332178237
Weight (lbs)57.5700
MPNSMART1500RM2UN
BrandTripp Lite
