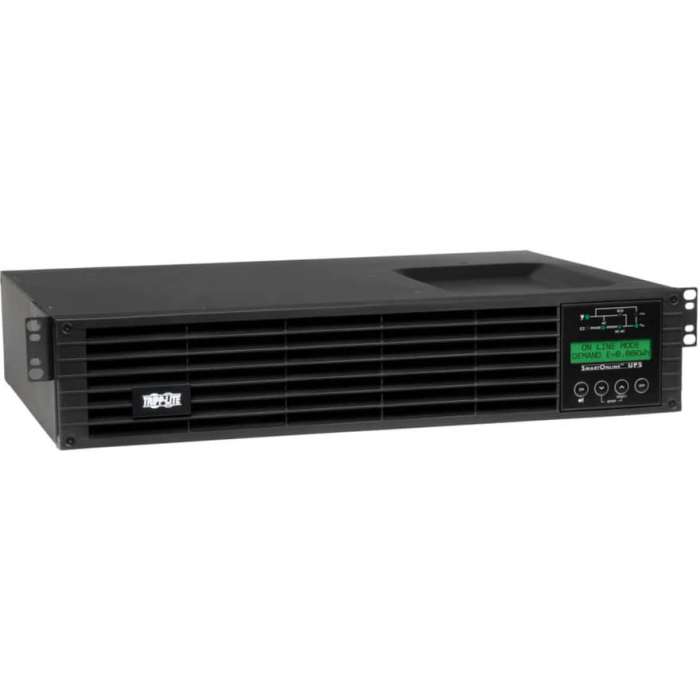

Tripp Lite UPS Smart Online 1500VA 1350W Rackmount 120V LCD USB DB9 2URM, 2U Rack/Tower, 3 Hour Recharge, 4.20 Minute Stand-by, 110 V AC Input

SKU
INGMPK7412
$1,296.75 /EACH

Delivered in 2-4 business days

Out of stock

Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss This 100/110/120/127V 50/60 Hz UPS system with IGBT technology maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 1350W capacity, high 0.9 power factor, 570 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer to battery mode in on-line double-conversion mode, the SmartOnline SU1500RTXLCD2U double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment. Individually Controllable Load Banks Let You Access and Control Outlets Remotely Six NEMA 5-15R outlets are split evenly into two switchable three-outlet load banks, allowing you to reboot select components or shed loads remotely. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable internal battery provides 14 minutes of support at half load (675W) and 4.2 minutes at full load (1350W), keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP48V24-2U (sold separately). The intelligent battery management system with temperature-compensated charging extends battery life. ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality. Automatically Turns Back On After Power Is Restored Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring The front-panel LCD features nine selectable screens of UPS data (including load, voltage and battery data) and 16 screens of configuration and setup options. LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, ECO mode operation, bypass mode operation and AC output status. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. An EPO port connects the UPS to a contact closure switch to enable emergency inverter shutdown. Cables are included.


Backup/Run Time (Full Load)4.20 Minute
Backup/Run Time (Half Load)14 Minute
Brand NameTripp Lite
Bypass SwitchAutomatic
Certifications & StandardsCSA; UL1778; FCC Part 15 Category A (EMI)
Country of OriginChina
Depth18.5"
Emergency Power OFFYes
Environmental CertificationRoHS
Environmentally FriendlyYes
Form FactorRack/Tower
Height3.5"
Hot SwappableYes
Input Voltage110 V AC
Load Capacity (VA)1500 VA
Load Capacity (W)1350 W
Manufacturer Part NumberSU1500RTXLCD2U
ManufacturerTripp Lite by Eaton
Network ManagementSNMP Manageable
Output Voltage110 V AC
Output Voltage115 V AC
Output Voltage120 V AC
Output Voltage127 V AC

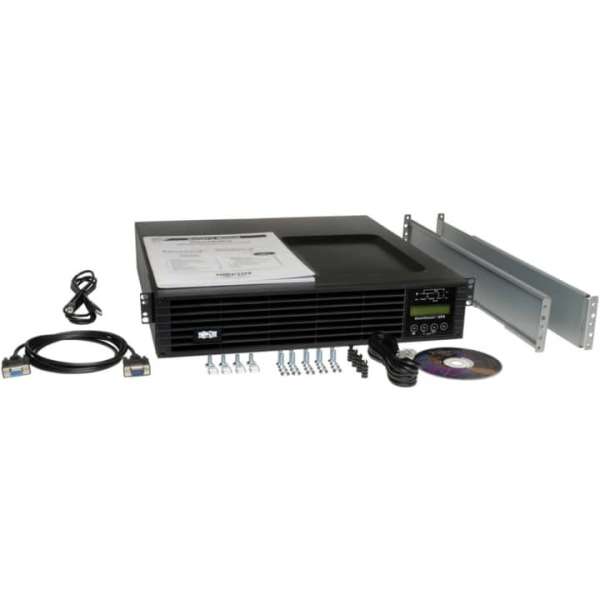

Package ContentsSmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS; PowerAlert Software CD; USB Cable; Serial Cable; EPO Cable; 4 Post Rackmount Installation Kit; Instruction Manual
Plug/Connector TypeNEMA 5-15P
Product FamilySmartOnline
Product LineSmartOnline
Product ModelSU1500RTXLCD2U
Product NameSmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS
Product TypeDouble Conversion Online UPS
Rack Height2U
Receptacle Detail6 x NEMA 5-15R
Receptacle TypeNEMA 5-15R
Serial Port (Interfaces/Ports)Yes
Software IncludedPowerAlert Software
Transfer Time0 ns
Typical Battery Recharge Time3 Hour
USB (Interfaces/Ports)Yes
Weight (Approximate)45.20 lb
Width17.5"
Download PDF File
BrandTripp Lite
Weight (lbs)58.1100
UPC037332168610
MPNSU1500RTXLCD2U
