Vertiv Liebert MicroPOD, (8) NEMA 5-20R, 16A, UPS Maintenance Bypass/Switch, (3) NEMA 5-20P
Delivered in 2-4 business days
- Comes with two-year, full-unit, and no-hassle replacement warranty.
- Output: Eight (8) NEMA 5-20R
- Input: Three (3) NEMA 5-20P
- Max Current: 16Amps
- AC 120V.
- Shipped with mounting brackets for easy mounting on any standard 19" rack, oin the floor, or on the wall.
- Designed for Vertiv Liebert PSI and Vertiv Liebert GXT UPS but is compatible with any UPS brand 3kVA models or lower.
- Avoid initiating unnecessary downtimes during UPS maintenance or replacement .
- Max Current: 16Amps
- Input: Three (3) NEMA 5-20P

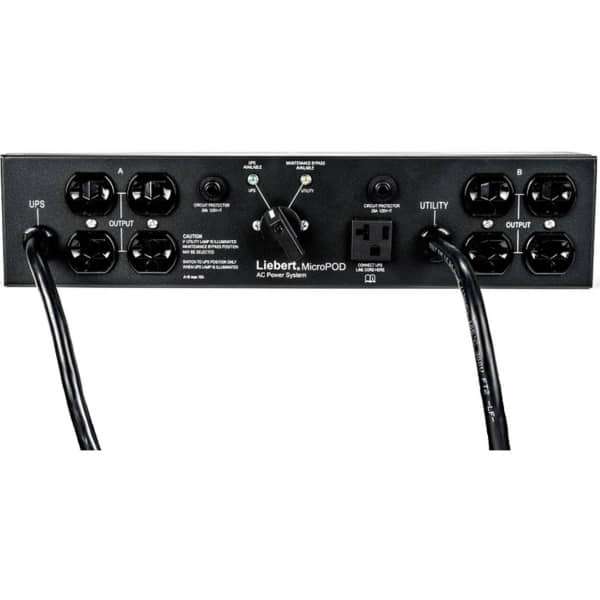

The Vertiv Liebert MicroPod External Maintenance Bypass POD (MP2-120C) is an external power output distribution (POD) unit and maintenance bypass switch for your uninterruptible power supply (UPS) unit. With the MicroPod, you can avoid initiating unnecessary downtimes during UPS maintenance or replacements. It allows the manual transfer of power from the UPS to the utility source without power interruption to the connected load, ensuring continuous uptime for your critical operations. The MicroPod MP2-120C is designed for the Vertiv Liebert GXT and Vertiv Liebert PSI UPS 3kVA models and below, but is compatible with other UPS brands as well. It comes with brackets for easy rack mounting and is equipped with three NEMA 5-20P input connectors. The MicroPOD has eight NEMA 5-20R output connectors and is available at 120V and supports a max current of 16A.
Brand Name | Liebert |
---|---|
Certifications & Standards | UL; cUL |
Compatibility | Liebert Micro-UPS Systems |
Current | 16 A |
Depth | 3.5" |
Form Factor | Rack-mountable |
Height | 3.5" |
Input Voltage | 120 V AC |
Manufacturer Part Number | MP2-120C |
Manufacturer | Vertiv |
Output Voltage | 120 V AC |
Package Contents | MicroPOD MP2-120C Bypass Switch; Brackets for Rack Mounting |
Plug/Connector Type | NEMA 5-20P |
Product Line | MicroPOD |
Product Model | MP2-120C |
Product Name | MicroPOD MP2-120C Bypass Switch |
Product Type | Bypass Switch |
Protection Type | Signal |
Protection Type | Surge |
Rack Height | 2U |
Receptacles | 8 x NEMA 5-20R |
Width | 17" |
Download PDF File |
UPC | 835514003113 |
---|---|
Weight (lbs) | 9.2500 |
MPN | MP2-120C |
Brand | Vertiv |
