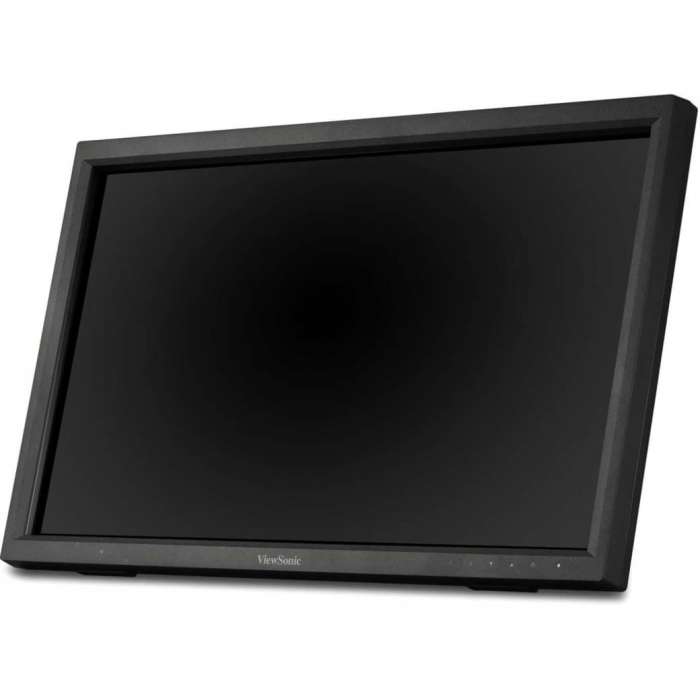

ViewSonic TD2223 22" 1080p 10-Point Multi IR Touch Monitor with HDMI, VGA, and DVI, 22" Touch Monitor, 10 Point(s) Multi-touch Screen, Full HD 1920 x 1080p, TN Panel
Delivered in 2-4 business days
Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic TD2223 is a 22" touch display with 10-point IR touch technology that lets users pinch, zoom and swipe for fast and intuitive navigation. With Full HD 1920x1080 resolution, 1000:1 static contrast ratio and 7H screen hardness, the TD2223 delivers sharp and bright images combined with durability for high-traffic applications. Flexible connectivity options include HDMI, VGA, DVI, and a USB hub to connect your peripherals and accessories. VESA-mount compatibility offers additional convenience and flexibility for 3rd party stands and mounts. What's more, ViewSonic's exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience. Combine this display with ViewSonic's Android and Windows media players for a perfect kiosk solution.
Aspect Ratio | 16:9 |
---|---|
Backlight Technology | LED |
Brand Name | ViewSonic |
Brightness (Video) | 250 Nit |
Brightness | 250 Nit |
Built-in Devices | USB Hub |
Certifications & Standards | cTUVus |
Color Supported (Video) | 16.7 Million Colors |
Color Supported | 16.7 Million Colors |
Country of Origin | China |
Curved Screen | No |
Depth with Stand | 4" |
Depth | 2.4" |
DVI (Interfaces/Ports) | Yes |
DVI | Yes |
Energy Star | Yes |
Environmental Certification | EPEAT Silver |
Environmentally Friendly | Yes |
Features | 7H Surface Hardness |
Features | Anti-glare |
Features | On-screen Display (OSD) |
Features | Scratch Resistant |
Features | Security Lock |
HDMI (Interfaces/Ports) | Yes |
HDMI | Yes |
Height with Stand | 13.10" |
Height | 12.5" |
Horizontal Frequency | 24 kHz to 82 kHz |
Horizontal Viewing Angle | 170 |
Limited Warranty | 3 Year |
Manufacturer Part Number | TD2223 |
Manufacturer | ViewSonic Corporation |
Maximum Resolution (Video) | 1920 x 1080 |
Maximum Resolution | 1920 x 1080 |
Multi-touch Screen (Touchscreen Information) | Yes |
Multi-touch Screen | Yes |
Native Contrast Ratio (Video) | 1,000:1 |
Number of HDMI Inputs (Interfaces/Ports) | 1 |
Number of HDMI Inputs | 1 |
Number of USB Ports (Interfaces/Ports) | 3 |
Operating Power Consumption | 19 W |
Package Contents | TD2223 - 22" Display, TN Panel, 1920 x 1080 Resolution; Power Cable; USB Type C cable; USB Type B Uplink Cable; Quick Start Guide |
Panel Technology | Twisted nematic (TN) |
Platform Supported | Mac |
Platform Supported | PC |
Product Color | Black |
Product Model | TD2223 |
Product Name | TD2223 - 22" Display, TN Panel, 1920 x 1080 Resolution |
Product Type | LCD Touchscreen Monitor |
Response Time | 5 ms GTG |
Screen Mode | Full HD |
Screen Size Class | 22" |
Speakers (Audio) | Yes |
Speakers | Yes |
Stand Adjustments | Tilt |
Standard Refresh Rate (Video) | 75 Hz |
Standard Refresh Rate | 75 Hz |
Touchscreen Type (Touchscreen Information) | Infrared |
Touchscreen Type | Infrared |
USB (Interfaces/Ports) | Yes |
USB | Yes |
Vertical Frequency | 50 Hz to 75 Hz |
Vertical Viewing Angle | 160 |
VESA Mount Compatible | Yes |
VESA Mount Standard | 100 x 100 |
VGA (Interfaces/Ports) | Yes |
VGA | Yes |
Viewable Screen Size | 22" |
Weight (Approximate) | 8.60 lb |
Weight with Stand (Approximate) | 9.90 lb |
Width with Stand | 20.50" |
Width | 20.5" |
Download PDF File |
UPC | 766907008647 |
---|---|
Weight (lbs) | 12.8200 |
MPN | TD2223 |
Brand | ViewSonic |
