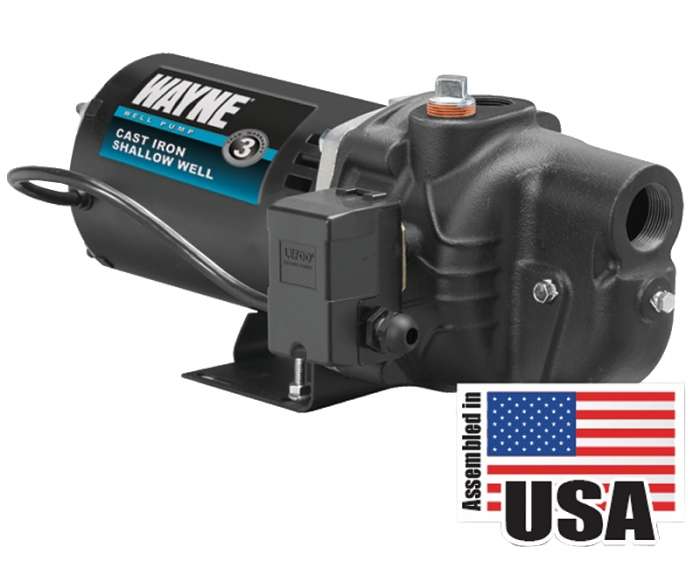

WAYNE SWS50 Jet Pump, 120/240 V, 0.5 hp, 1-1/4 in Suction, 3/4 in Discharge Connection, 25 ft Max Head, 375 gph, Iron
$261.38 /EACH
Delivered in 2-4 business days
In stock
- Dual voltage (120/240 V) high efficiency square flange motor (factory set for 240 V)
- Pressure switch is pre-set at 30-50 psi for automatic operation
- Durable cast iron volute with dedicated priming port for volute filling
- For wells 0 - 25 ft in depth
Category: Sump Pump Parts & Accessories
Shallow well jet pumps are single-stage domestic water pumps designed for pumping portable water in applications where the water is located less than 25 ft vertically from the pump. A pressure switch is a standard feature. The shallow well pump can be mounted to either a pre-charged, conventional type or free-standing pressure tank.
| Connection Size | 1-1/4 in Suction 3/4 in Discharge |
|---|---|
| Connection Type | NPT |
| Flow Rate | 375gph |
| Frequency Rating | 60Hz |
| HP Rating | 0.5hp |
| Material | Iron |
| Maximum Head | 25ft |
| Motor Type | Dual Voltage |
| Number of Stages | 1 |
| Pressure Rating | 50psi |
| Suitable for | 0 to 25 ft Depth Shallow Wells |
| Voltage Rating | 120/240V |
| Weight (lbs) | 39.0000 |
|---|---|
| Brand | WAYNE SWS50 Jet Pump, 120/240 V, 0.5 hp, 1-1/4 in Suction, 3/4 in Discharge Connection, 25 ft Max Head, 375 gph, Iron |
| UPC | 040066218773 |
| MPN | SWS50 |
