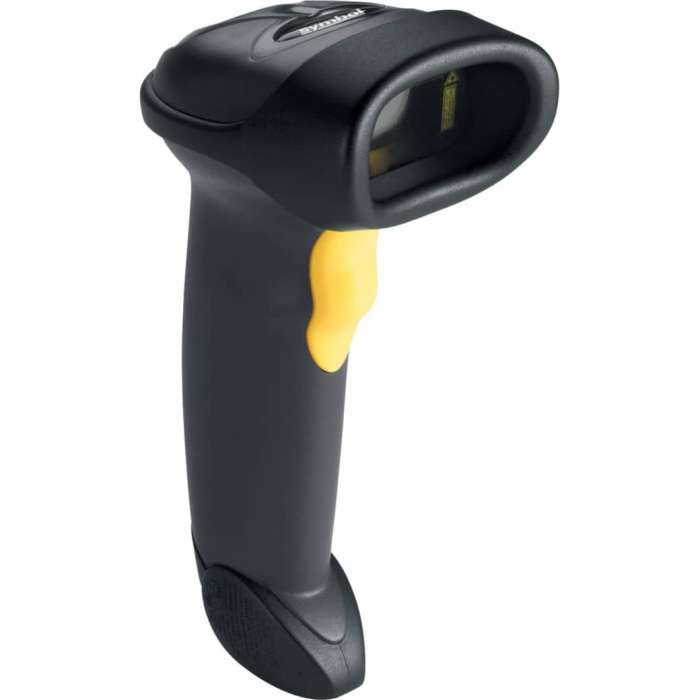

Zebra Technologies Zebra LS2208 Bar Code Reader, Wired, Linear
Delivered in 2-4 business days
- Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
- A trustworthy linear image scanning provides solid state barcode reading
- Wired connectivity makes this scanner ideal for retail and desktop applications
- Laser scan engine guarantees rapid error free data entry
- Allows productive and precise reading of 1D barcodes
- Scan barcodes with a staggering speed of 100 scan/s
OUR BEST SELLING HANDHELD LASER SCANNERWith over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all - enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 - the well-proven scanner powering the checkout lines all around the world.Durable constructionWith its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.Capture high-density bar codes for greater application flexibilityWith just one scanner, you can capture the high density bar codes common on small items.Deploy in every corner of the worldWith support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.Class-leading working rangeWorkers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.Class-leading working rangeWorkers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.All day comfort your workers can count onThe well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.Flexible handheld or hands-free operationThe optional IntellistandTM enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.Multiple interfacesNo matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.Truly plug-and-playThe universal cable connects to any computing environment, practically eliminating setup and training time.Advanced Data Formatting (ADF)Format data properly before it is sent to your host computer, eliminating the costly modification of host software.
| Application/Usage | Education |
|---|---|
| Application/Usage | Retail |
| Barcode Symbology Supported | UPC/EAN; UPC/EAN Supplementals; UCC/EAN 128; Code 39; Code 39 Full ASCII; Code 39 TriOptic; Code 128; Code 128 Full ASCII; Codabar; Interleaved 2 of 5; Discrete 2 of 5; Code 93; MSI; Code 11; IATA; RSS Variants; Chinese 2 of 5 |
| Brand Name | Zebra |
| Cable Type Included | USB |
| Certifications & Standards | Environmental: RoHS 2002/95/EECElectrical Safety:; UL1950; CSA C22.2 No. 950; EN60950/IEC950EMI/RFI:; FCC Part 15 Class B; ICES-003 Class B; European Union EMC Directive; Australian SMA; Taiwan EMC; Japan VCCI/MITI/DentoriLaser Safety::; CDRH Class II; IEC Class 2 |
| Connectivity Technology | Cable |
| Country of Origin | Mexico |
| Depth | 3.3" |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Handheld |
| Height | 6" |
| Host Interface (Interfaces/Ports) | USB |
| Host Interface | USB |
| Image Sensor Type | Linear |
| Ingress Protection (IP) Rating | IP30 |
| Input Voltage | 5 V DC |
| Light Source | Laser |
| Limited Warranty | 5 Year |
| Manufacturer Part Number | LS2208-SR20007R-UR |
| Manufacturer | Zebra Technologies Corporation |
| Maximum Ambient Light | 86111 lux |
| Maximum Element Resolution (Code 39) | 40 mil |
| Minimum Element Resolution (Code 39) | 3 mil |
| Minimum Print Contrast | 20% |
| Package Contents | Symbol LS2208 Bar Code Reader; USB Cable; Gooseneck Stand |
| Platform Supported | PC |
| Power Source | USB |
| Product Color | Black |
| Product Family | Symbol |
| Product Line | Symbol |
| Product Model | LS2208 |
| Product Name | Symbol LS2208 Handheld Barcode Scanner |
| Product Type | Barcode Scanner Kit |
| Reading Angle (Pitch) | 65 |
| Reading Angle (Roll) | 30 |
| Reading Angle (Skew) | 60 |
| Rugged | Yes |
| Scan Pattern | Single Line |
| Scan Rate | 100 scan/s |
| Scanning Capability | 1D |
| Scanning Distance | 17" |
| Stand Included | Yes |
| Weight (Approximate) | 5.15 oz |
| Width | 2.5" |
| Download PDF File |
| Brand | Zebra Technologies |
|---|---|
| Weight (lbs) | 1.3500 |
| UPC | 999999999999 |
| MPN | LS2208-SR20007R-UR |
