4XEM 4-Port VGA Splitter 350 MHz, 350 MHz to 350 MHz, 2048 x 1536, 213 ft Maximum Operating Distance, VGA In
Delivered in 2-4 business days
- 4XEM unmatched 2year warranty
- Supports 350MHz video bandwidth
- Supports distances up to 213ft
- Supports resolutions up to 2048x1536 @ 80Hz
- Simple plug and play installation
- Compatible with VGA, SVGA and Multisync monitors
- High quality construction and high-resolution support
- Maintains signal strength for clean, sharp imaging

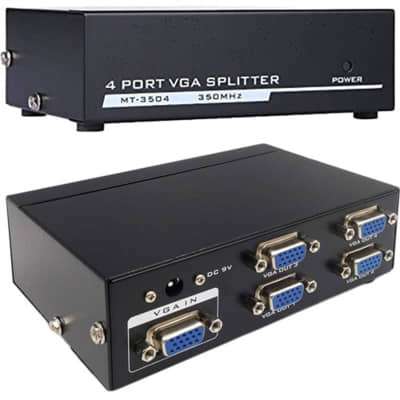

4XEM's 4-Port VGA Video Splitter simultaneously delivers high resolution VGA video from a single source to up to four separate monitors. With support up to 350MHz VGA video bandwidth and resolutions up to 2048x1536 @ 80Hz, this high performing splitter offers superior image quality. Monitors can be positioned up to 213ft away from the VGA video source. Simple to install and paired with one of our 4XEM standard extension cables, this durable unit can lay flat on or under your workspace. Perfect for classrooms, tradeshows, or in-store displays when you need high quality video on several monitors.Problem it Solves: Need to split one image over four displays and still retain image quality? This VGA video splitter is your ticket, offering outstanding distance options and sharp, clear images. Ideal for retail displays, trade shows, etc.4XEM VGA splitters and VGA switches come with our unmatched 2year Warranty!.
Additional Information | Signal :VGA .SVGA.XGA.QXGA,UXGA and Multisync displays; RGB: Bandwidth 350MHz; Video input :1Vp-p; Maximum Video Resolutions :1920×1440@85HZ; VGA Bandwidth:350M/-3db; Operating Environment Temperature:-10-40 |
---|---|
Brand Name | 4XEM |
Depth | 3.3" |
Height | 1.8" |
Impedance | 75 Ohm |
Input Voltage | 12 V DC |
Manufacturer Part Number | 4XVGASP3504 |
Manufacturer | 4XEM Corporation |
Maximum Frequency | 350 MHz |
Maximum Gain | 1 dB |
Maximum Operating Distance | 213 ft |
Maximum Video Resolution (Video) | 2048 x 1536 |
Maximum Video Resolutions | 1920×1440@85HZ |
Minimum Gain | 0 dB |
Number of VGA Inputs (Interfaces/Ports) | 1 |
Number of VGA Inputs | 1 |
Number of VGA Outputs (Interfaces/Ports) | 4 |
Number of VGA Outputs | 4 |
Operating Environment Temperature | -10-40 |
Package Contents | 4 Port VGA Splitter 350 MHz; 1 x Power Adapter; 1 x User Manual |
Packaged Quantity | 1 |
Product Name | 4 Port VGA Splitter 350 MHz |
Product Type | Signal Splitter |
RGB | Bandwidth 350MHz |
Signal | VGA .SVGA.XGA.QXGA,UXGA and Multisync displays |
VGA Bandwidth | 350M/-3db |
VGA In (Interfaces/Ports) | Yes |
VGA Out (Interfaces/Ports) | Yes |
Video input | 1Vp-p |
Weight (Approximate) | 1.10 lb |
Width | 5.7" |
Download PDF File |
UPC | 873791005932 |
---|---|
Weight (lbs) | 0.9500 |
MPN | 4XVGASP3504 |
Brand | 4XEM |
