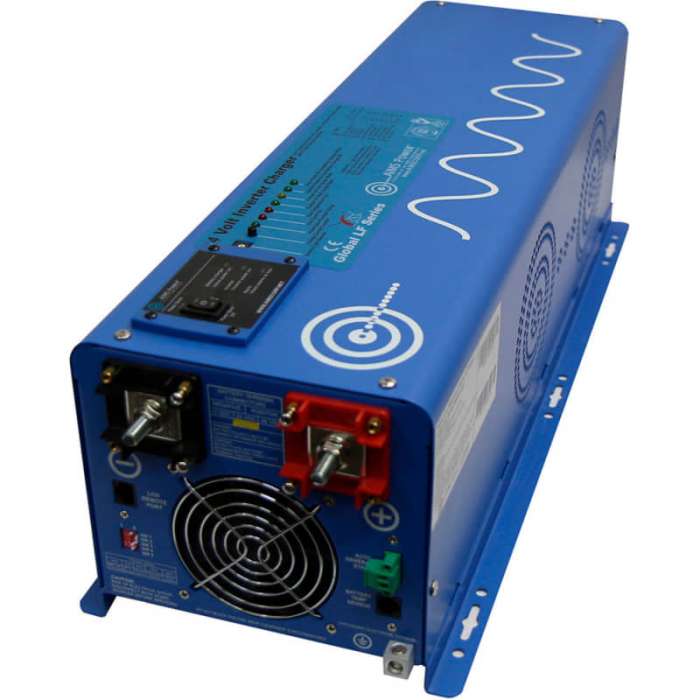

AIMS 4000 Watt Pure Sine Inverter Charger 12Vdc/120Vac Input & 120/240Vac, PICOGLF40W12120240VS

Aims 4000 watt pure sine inverter charger 12vdc/120vac input & 120/240vac combine this solar inverter charger with a deep-cycle battery bank for off-grid, mobile and emergency backup power.the most popular feature of this unit is the direct connect terminal block, which allows a 300 percent surge capacity for up to 20 seconds. when using the terminal block, this inverter peaks at 12000 watts with the power to run many tools and appliances with a startup surges, such as a refrigerators, freezers, microwaves and blow dryers. output specifications continuous output power 4000 watt surge rating 12,000 watt (20 seconds) output 120/240 vac output waveform pure sine/same as input (bypass mode) nominal efficiency 88 (peak) line mode efficiency 95 output frequency 50hz +/- 0.3hz / 60hz +/- 0.3hz typical transfer time 10ms (max) thd 10 dc input specifications nominal input voltage 12.0 vdc minimum start voltage 10.0 vdc low battery alarm 10.5 vdc-11.0 vdc low battery trip 10.0 vdc-10.5 vdc high voltage alarm 16.0 vdc low battery voltage restart 15.5 vdc idle consumption 50 watts power saver mode idle consumption 21 watts charger specifications output voltage depends on battery type charger rate 115a over charge protection shutdown 15.7 v selectable charge setting based on battery type adjustable charge current off- 20-100 four stage smart charger transfer switch specifications 40 amp automatic transfer switch10 ms (max) dimensions unit size l x w x h 31.5" x 8.75" x 7.25" shipping size l x w x h 35.5" x 14.50" x 13.50" unit weight 75 lbs shipping weight 87 lbs.
