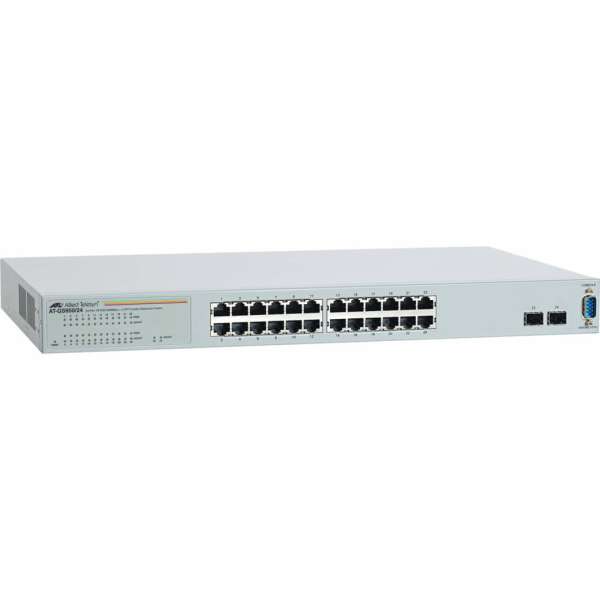

Name: Allied Telesis AT-GS950/24 24 Port Gigabit WebSmart Switch, 24 x 10/100/1000Base-T
Brand: Allied Telesis
SKU: INGMG68267
Price: 493.05 USD
Availability: OutOfStock

Details

Allied Telesyn's AT-GS950/24 WebSmart switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network.

Additional Information	Non-Blocking Architecture; Link Aggregation; Port Setting (Speed, Availability, Flow Control); Fanless Design
Brand Name	Allied Telesis
Certifications & Standards	IEEE:; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3xElectrical/Mechanical Approvals:; UL 1950; FCC/EN55022 Class A; VCCI Class A; C-Tick; EN60950 (TUV); EN55024; CE
Country of Origin	Taiwan
Depth	10.1"
Ethernet Technology	Gigabit Ethernet
Expansion Slot Type (I/O Expansions)	SFP
Expansion Slot Type	SFP
Form Factor	Rack-mountable
Form Factor	Wall Mountable
Frequency	60 Hz
Height	1.7"
Layer Supported	2
Manageable	Yes
Management	Web Based Management; Port based VLAN; 802.1p QoS; Port trunking/link aggregation; Port mirroring; Priority queue's; Spanning tree; Statistics & Diagnostics
Manufacturer Part Number	AT-GS950/24-10
Manufacturer	Allied Telesis, Inc
Media Type Supported	Twisted Pair
Network Technology	10/100/1000Base-T
Number of Network (RJ-45) Ports (Interfaces/Ports)	24
Number of SFP Slots (I/O Expansions)	4
Number of Total Expansion Slots (I/O Expansions)	4
Number of Total Expansion Slots	4
Package Contents	AT-GS950/24 24 Port Gigabit WebSmart Switch; Wall & 19" Rack mount brackets; U.S. power cord
Port/Expansion Slot Details (Interfaces/Ports)	24 x Gigabit Ethernet Network
Port/Expansion Slot Details (Interfaces/Ports)	4 x Gigabit Ethernet Expansion Slot
Product Model	AT-GS950/24
Product Name	AT-GS950/24 24 Port Gigabit WebSmart Switch
Product Type	Ethernet Switch
Shared SFP Slot (I/O Expansions)	Yes
Total Number of Network Ports (Interfaces/Ports)	24
Total Number of Network Ports	24
Weight (Approximate)	7.14 lb
Width	17.3"
Download PDF File	Manufacturer Brochure User Manual

More Information

Brand	Allied Telesis
Weight (lbs)	6.600000
UPC	767035178431
MPN	AT-GS950/24-10
