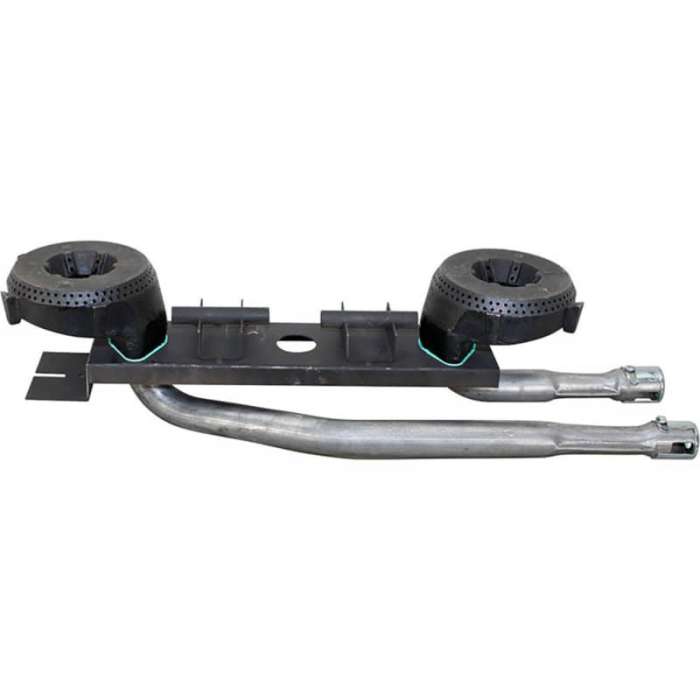

Allpoints 24-1107 Cast Iron / Steel Open Top Burner Assembly - 19 1/2" Long

open top burner assy 19.5" from air shutter side of long venturi to the burner head ci/steel air shutter # 26-1863 (2), burner head # 24-1105 (2) mounting plate # 26-3218 (1) gaskets # 32-1165 (4) front venturi # 26-3212 note the front venturi is 7" long from ctr of holes to end of air shutter. rear venturi # 26-3213 the rear venturi is 15-5/8" long from ctr of holes to end of air shutter. mounting screws 10-24 x 1/2" (4) wolf ch, chss.
