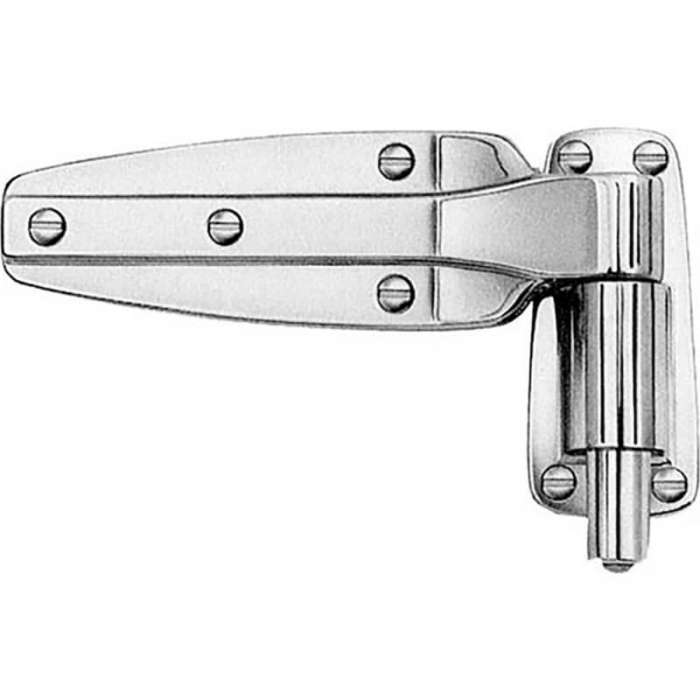

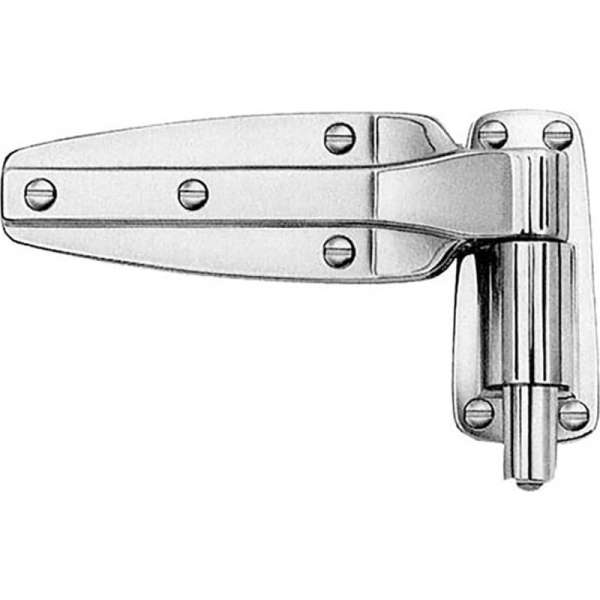

Allpoints 261911 Kason 11248000016 Hinge For Kason

reversible spring assisted cam rise hinge, 10-1/8" long od. x 5-21/32" wide. to reverse remove cap and push out cam, replace cam on other side of strap and replace cap. strap has a hex hole in it which accepts the stem from the flange., number "1245" is cast on strap number "1248" is cast on flange. 1-1/8" offset die cast zinc polished chrome plated.
