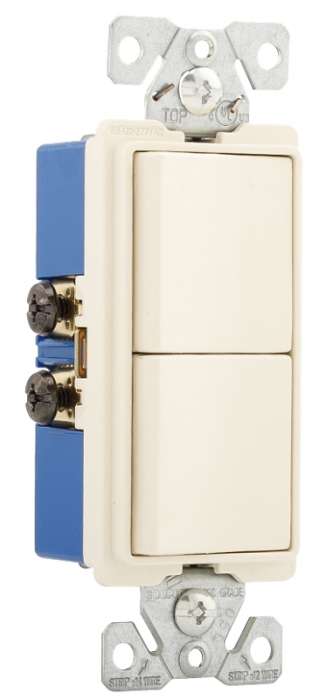

EATON 7728LA-SP Combination Switch, 15 A, 120, 277 VAC, 3-Way, Screw Terminal, Light Almond
SKU
ORG3291341
by EATON
$27.84 /EACH
Delivered in 2-4 business days
In stock
- 120/277 V/AC rating is ideal for incandescent or fluorescent lighting fixtures
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy-use
- Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings
- Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used
- Steel mounting strap is zinc-plated for added corrosion resistance
- Backwire clamps on side terminals provide for easy installation of #12 and #14 wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break-off provision on switches for wiring both devices on the same circuit or on separate circuits
- Triple wipe blade contacts and double wipe ground contacts to insure long-term plug retention (TR7730)
Categories: Tools & Garage, Electrical, Rough Electrical, Switches & Receptacles, Switch Combos
Commercial-grade, decorator combination switch/receptacle back and side wire feature the decorator design for easy, smooth actuation of the rocker panels. 120/277 VAC rating is ideal for incandescent or fluorescent lighting fixtures. Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use.
| Color | Light Almond |
|---|---|
| Contact Configuration | 3-Way |
| Contact Material | Brass |
| Current Rating | 15A |
| Dimensions | 1.3 in L x 1.08 in W x 4.19 in H |
| Housing Material | Polycarbonate/PVC/Thermoplastic |
| Mounting Type | Flush |
| Number of Poles | 1 |
| Temperature Rating | -20 to 60deg C |
| Terminal Type | Screw |
| Voltage Rating | 120 277VAC |
| Wattage Rating | 15W |
| Download PDF File |
| UPC | 032664664755 |
|---|---|
| Weight (lbs) | 1.9400 |
| MPN | 7728LA-SP |
| Brand | EATON |
