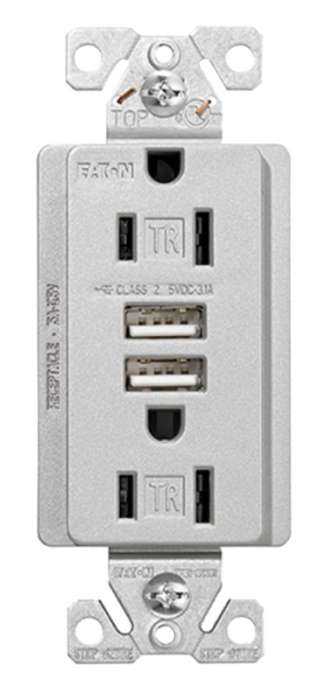

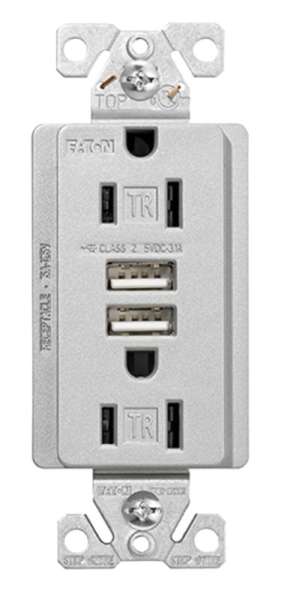

Arrow Hart TR7755SG-K-L Duplex Combination USB Receptacle, 125 VAC Receptacle, 5 VDC USB, 2-Pole
SKU
ORG1452937
$42.15 /CARD
Delivered in 2-4 business days
In stock
- Standard AC receptacle with two USB charging ports for conveniently charging most electronic components
- Dual USB charging ports charge most compatible electronic devices that charge via a 5 V power adapter
- Tamper-resistant construction
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire stripper speeds installation
- Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
- Replaces a standard duplex receptacle
The Arrow Hart 3.1 A USB duplex receptacle provides quick and convenient access to charge virtually any electronic component including smart phones, tablets, e-readers, cameras and MP3 players. The specification-grade device is built to withstand the tough demands of the commercial environment while also providing code compliance with 2011 NEC Article 406.12 that requires tamper-resistant receptacles in dwelling units.
| Color | Silver Granite |
|---|---|
| Current Rating | 3.1 A USB 15 A Receptacle |
| Dimensions | 1.47 in D x 4.19 in H |
| Frequency Rating | 140kHz |
| Material | Thermoplastic |
| Number of Poles | 2 |
| Number of USB Ports | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -4 to 140deg F |
| Type | Duplex |
| Voltage Rating | 125 VAC Receptacle 5 VDC USB |
| Wire Size | 12 to 14AWG |
| Wiring Type | Back and Side |
| Download PDF File |
| UPC | 032664767159 |
|---|---|
| Weight (lbs) | 0.3500 |
| MPN | TR7765SG-KB-L |
| Brand | Eaton Cooper Wiring |
