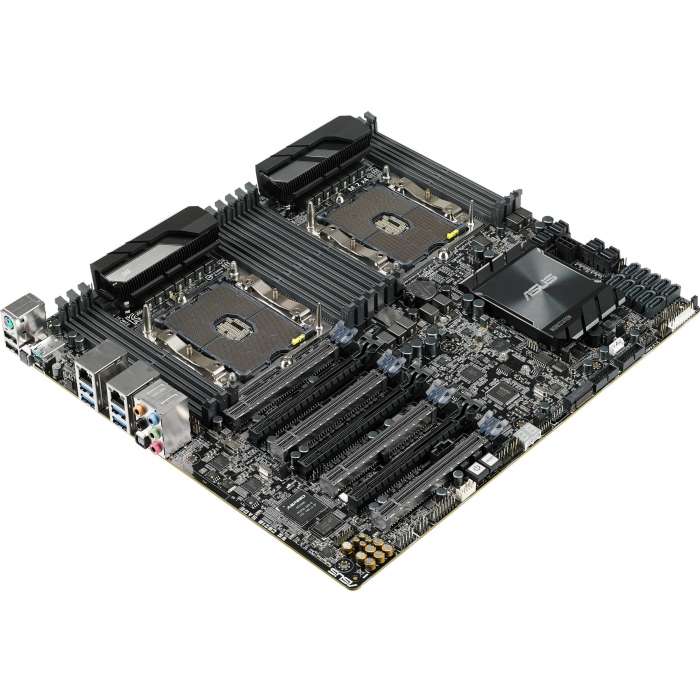

Asus WS C621E SAGE Workstation Motherboard, Intel C621 Chipset, Socket P LGA-3647, SSI EEB, 768 GB DDR4 SDRAM Maximum RAM
Delivered in 2-4 business days
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor.
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance.
- RAID supported levels provide data reliability and fault tolerance.
- Assure a solid foundation for PC components and magnify the performance with the support of multiple processors on SSI EEB workstation motherboard .
Intel C621 motherboard with quad-strength graphics support and 12 DDR4 memory slots; Up to 4-Way NVIDIA SLI and AMD Crossfire X on demand; Two-way Xeon CPU OC tuning for extreme performance; Superb scalability and connectivity with onboard U.2, M.2, and USB 3.1 Type-C and Type-A; Built with premium components for excellent power efficiency; Easy Management and maintenance with ASUS Control Center (ACC) management software and USB BIOS Flashback. Extreme Power and Performance. Up to 4-way multiple-graphic cards. The Intel C621 chipset-based dual socket workstation motherboard features on-demand NVIDIA GeForce SLI, NVIDIA Quadro SLI, and AMD CrossFireX technology. ASUS WS C621E SAGE accommodates up to four dual-width graphic cards with a four true PCIe Gen3 x16 link to unleash maximum graphic performance. With support for up to 4-way NVIDIA GeForce SLI, AMD CrossFireX, and 2-Way NVIDIA Quadro SLI, WS C621E SAGE is an excellent choice for content creators, mechanical or architectural engineers, and anyone with processing-intensive workloads. Extraordinary performance with dual Intel Xeon CPU overclocking. Dual Intel Xeon CPU overclocking, pushes the power processing power beyond the extreme. ASUS WS C621E SAGE breaks performance barriers, giving you the capability to overclock dual Xeon CPUs. With its unique BIOS mechanism dedicated to boosting CPU performance, WS C621E SAGE can deliver incredible system speed. Expandable and Scalable. Supporting up to 12 DDR4 Error-correcting code memory (ECC Memory). Keeps your system running at a brisk pace, even when running multiple hardware-intensive programs! ASUS WS C621E SAGE supports up to 12 DDR4 error-correcting code (ECC) memory to ensure fast and responsive system performance, even when running multiple RAM-intensive applications - such as video, audio and image editing applications - simultaneously. Lightning-fast storage speed with NVMe PCIe SSD RAID 0 support. With support for multiple NVMe PCIe storage devices configured as a RAID 0 array, ASUS WS C621E SAGEA lets you enjoy lightning-fast data transfers that are far beyond those provided by single drives. Super-fast transfers at up to 32Gbps with onboard four U.2 and M.2. ASUS WS C621E SAGE is built with onboard M.2 and U.2 connectors to fit both 2.5-inch NVMe and M.2 SSDs. By using the maximum PCIe Gen3.0 x4 bandwidth of 32Gbps, WS C621E SAGE enables data transfer speeds that are up to 5.3X faster than traditional storage devices. 10Gb/s USB 3.1 Gen2 onboard. With backward-compatible USB 3.1 Gen2 Type-A and reversible USB 3.1 Gen2 Type-C ports, you'll experience ultimate connection flexibility and data-transfer speeds of up to 10Gb/s - twice as fast as USB 3.0 or USB 3.1 Gen1.
Audio Channels (Audio) | 7.1 |
---|---|
Brand Name | Asus |
Chipset Manufacturer | Intel |
Chipset Model | C621 |
Controller Type (I/O Controller) | Serial ATA/600 |
Controller Type | Serial ATA/600 |
Country of Origin | China |
Depth | 13" |
Form Factor | SSI EEB |
Gigabit Ethernet | Yes |
Manufacturer Part Number | WS C621E SAGE |
Manufacturer Website Address | http://usa.asus.com |
Manufacturer | ASUS Computer International |
Maximum Memory Supported | 768 GB |
Maximum Memory | 768 GB |
Memory Form Factor | DIMM |
Memory Form Factor | LRDIMM |
Memory Form Factor | RDIMM |
Memory Speed Supported | 2400 MHz |
Memory Speed Supported | 2666 MHz |
Memory Technology | DDR4 SDRAM |
Multi GPU Supported | CrossFireX |
Multi GPU Supported | SLI |
Number of M.2 Interfaces | 1 |
Number of Memory Slots | 12 |
Number of Onboard USB 3.1 Ports | 4 |
Number of PCI Express x16 Slots (I/O Expansions) | 7 |
Number of PCI Express x16 Slots | 7 |
Number of SATA Interfaces | 10 |
Number of Total Expansion Slots (I/O Expansions) | 7 |
Number of Total Expansion Slots | 7 |
Number of USB 3.1 Ports (Interfaces/Ports) | 6 |
Number of USB 3.1 Ports | 6 |
Onboard Video (Video) | No |
Onboard Video | No |
Processor Socket | Socket P LGA-3647 |
Processor Supported | Xeon |
Product Model | WS C621E SAGE |
Product Name | WS C621E SAGE Workstation Motherboard |
Product Type | Workstation Motherboard |
RAID Levels (I/O Controller) | 0 |
RAID Levels (I/O Controller) | 10 |
RAID Levels (I/O Controller) | 5 |
RAID Supported (I/O Controller) | Yes |
RAID Supported | Yes |
S/PDIF (Interfaces/Ports) | Yes |
Total Number of Onboard USB Ports | 6 |
Total Number of PCI Express Slots (I/O Expansions) | 7 |
Total Number of PCI Express Slots | 7 |
Total Number of USB Ports (Interfaces/Ports) | 10 |
Total Number of USB Ports | 10 |
Total Processor Supported | 2 |
Width | 12" |
UPC | 889349910375 |
---|---|
Weight (lbs) | 8.2200 |
MPN | WS C621E SAGE |
Brand | ASUS |
