(149118 ratings)
Axis Communications AXIS F1004 Indoor HD Surveillance Camera, Color, TAA Compliant, 1280 x 720, 3.70 mm Fixed Lens
SKU
INGM4W8780
by Axis
$145.89
Delivered in 2-4 business days
Out of stock
- Detachable cable for easy and flexible installation.
- 57 horizontal field of view.
- HDTV 720p resolution.
- Pinhole lens for extremely discreet surveillance .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Home Security & Safety

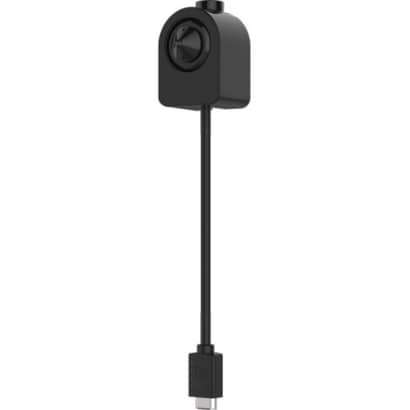

AXIS F1004 Pinhole Sensor Unit has a pinhole lens for extremely discreet indoor video surveillance. Only a very small hole would be visible externally. It is ideal for use in retail stores, ATMs, and ticket/vending and health monitoring machines. Extremely discreet surveillance. The sensor unit can be mounted in tight places, and behind a metal, plastic or glass panel that is up to 5.2 mm (3/16 in.) thick when used with the included mounting bracket. AXIS F1004 Pinhole offers a 57 horizontal field of view, a 720p video resolution, and good low-light performance in color. It comes with a detachable 8-m (26 ft) cable for connection to an AXIS F Main Unit.
| Brand Name | AXIS |
|---|---|
| Color Supported (Display & Graphics) | Color |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Depth | 0.7" |
| Features | Wide Dynamic Range |
| Field of View (Display & Graphics) | Horizontal angle of view: 57° - Vertical angle of view: 31° |
| HD Recording | Yes |
| Height | 0.8" |
| Image Sensor Type (Display & Graphics) | RGB CMOS |
| Image Sensor Type | RGB CMOS |
| Indoor/Outdoor | Indoor |
| Lens Included (Lens) | Yes |
| Lens Mount Type (Lens) | Pin Hole |
| Lens Mount Type | Pin Hole |
| Lens Type (Lens) | Fixed |
| Longest Shutter Speed (Exposure) | 1/6 Second |
| Manufacturer Part Number | 01003-001 |
| Manufacturer | Axis Communications |
| Maximum Aperture (Lens) | f/2.5 |
| Maximum Focal Length (Lens) | 3.70 mm |
| Maximum Focal Length | 3.70 mm |
| Maximum Frame Rate (Video) | 30 fps |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Video Resolution (Video) | 1280 x 720 |
| Maximum Video Resolution | 1280 x 720 |
| Minimum Operating Temperature | -4°F (-20°C) |
| Mount Type | Bracket Mount |
| NDAA Compliant | Yes |
| Operating Humidity | 85% |

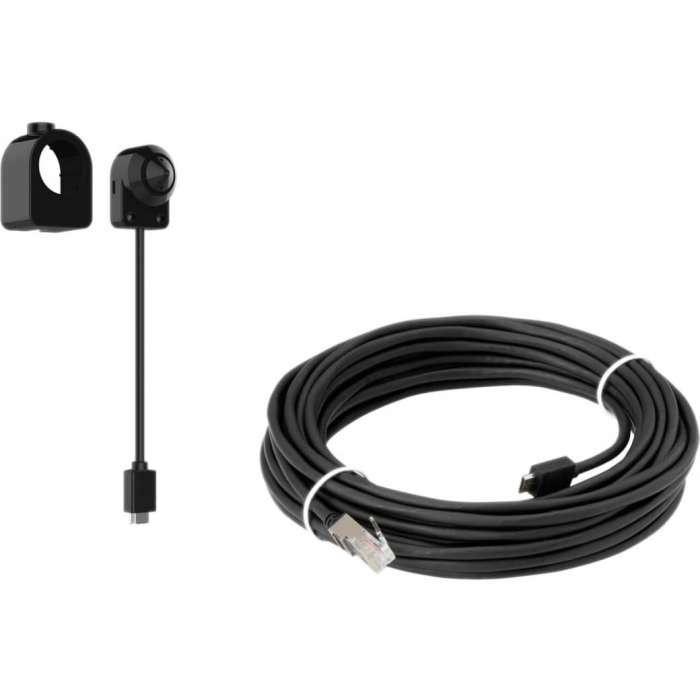

| Package Contents | F1004 Pinhole Sensor Unit; Installation Guide; AXIS F8206 Pinhole Mounting Bracket; 8-m (26 ft) Black Cable |
| Product Color | Black |
| Product Family | F |
| Product Model | F1004 |
| Product Name | F1004 Pinhole Sensor Unit |
| Product Series | F |
| Product Type | Surveillance Camera |
| Recording Formats | HD |
| Remote Management | No |
| Shortest Shutter Speed (Exposure) | 1/24500 Second |
| TAA Compliant | Yes |
| Weight (Approximate) | 0.49 oz |
| Width | 1.1" |
| Download PDF File |
| Brand | Axis |
|---|---|
| Weight (lbs) | 0.5500 |
| UPC | 331021054462 |
| MPN | 01003-001 |
