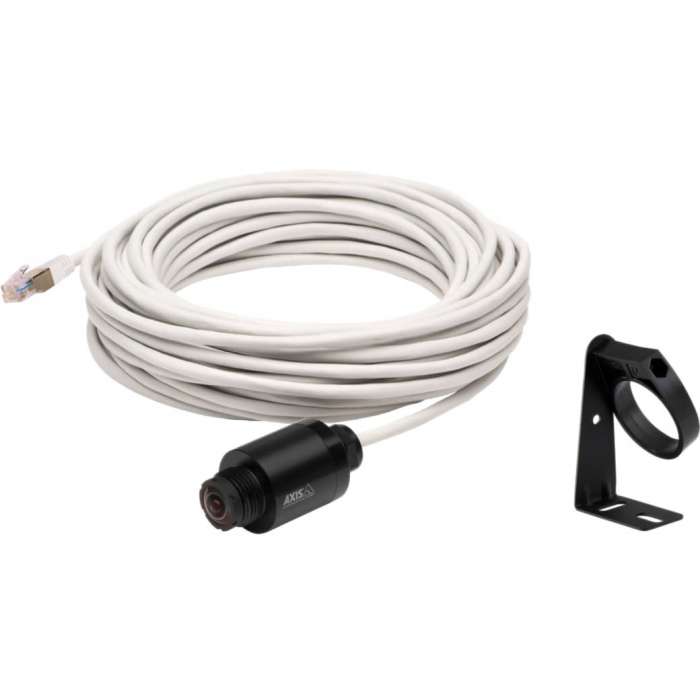

Axis Communications AXIS F1035-E Sensor Unit, Aluminum
Delivered in 2-4 business days
Flexible, rugged design for indoor, outdoor and mobile use; Fisheye lens with HDTV 1080p resolution; Ultra-wide 194 horizontal field of viewDiscreet, wide area surveillance. AXIS F1035-E Sensor Unit, together with an AXIS F Main Unit, provides wide area coverage with a fisheye view. It is ideal for highly discreet overview surveillance in indoor, outdoor and mobile surveillance applications; for example, at entrances, long corridors, around an ATM (automated teller machine), in emergency vehicles, buses and trams.. The small sensor unit can be installed in tight places, flush-mounted in a wall or ceiling, or incorporated in a lightbar on top of an emergency vehicle. The rugged, IP66-rated AXIS F1035-E withstands dust, rain, snow, vibrations, shock and temperature fluctuations.. AXIS F1035-E comprises an image sensor and a fisheye lens that provides a 194 horizontal field of view in 1080p resolution. It comes with a 3-m or 12-m (10-ft. or 39-ft.) pre-mounted cable for connection to an AXIS F Main Unit. The main unit can be placed further away in an indoor location, inside a vehicle or in an outdoor enclosure. AXIS F1035-E comes with an AXIS F8201 Vari-angle Mounting Bracket that enables the sensor unit to be secured and tilted in any position.
| Additional Information | Cable Length: 10 ft; Image sensor: 1/2.8" (effective) progressive scan RGB CMOS; Minimum illumination:Color: 0.3 lux; Lens: 1.3 mm, F2.8: 194 view with AXIS F41/F44; 112 view with AXIS F44 in HDTV 720p; Operating conditions: Humidity 10-100% RH (condensing) | |
|---|---|---|
| Application/Usage | Automotive | |
| Application/Usage | Indoor | |
| Application/Usage | Outdoor | |
| Application/Usage | Surveillance | |
| Brand Name | AXIS | |
| Cable Length | 10 ft | |
| Certifications & Standards | ECE R10 rev.04; EN 50121-4; IEC/EN/UL 60950-1; IEC 60068-2-1; IEC 60068-2-2; IEC 60068-2-14; IEC 60068-2-30; IEC 60068-2-78; IEC 60529 IP4X; IEC 62236-4; EN 55022 Class B; EN 55024; EN 61000-3-2; EN 61000-3-3; EN 61000-6-1; EN 61000-6-2; FCC Part 15 Subpart B Class B; ICES-003 Class B; VCCI Class B; C-tick AS/NZS CISPR 22 Class B; KCC KN22 Class B KN24; EN 50581; EN 50155 (vibration, shock, bump); IEC 60068-2-60; IEC 60529 IP66; IEC 60721-3-5 5M3 (vibration, shock); IEC/EN/UL 60950-22; NEMA 250 Type 4X | |
| Depth | 1.2" | |
| Form Factor | Ceiling Mountable | |
| Form Factor | Flush Mount | |
| Form Factor | Wall Mountable | |
| Height | 2.4" | |
| Image sensor | 1/2.8" (effective) progressive scan RGB CMOS | |
| Lens | 1.3 mm, F2.8 | 194 view with AXIS F41/F44 |
| Manufacturer Part Number | 0737-001 | |
| Manufacturer | Axis Communications | |
| Material Details | Aluminum - Casing | |
| Minimum illumination | Color | 0.3 lux |
| NDAA Compliant | Yes | |
| Operating conditions | Humidity 10-100% RH (condensing) | |
| Package Contents | F1035-E Sensor Unit; F8201 Mounting Bracket; Installation Guide | |
| Product Family | F | |
| Product Material | Aluminum | |
| Product Model | F1035-E | |
| Product Name | F1035-E Sensor Unit | |
| Product Series | F | |
| Product Type | Surveillance Camera Sensor Unit | |
| TAA Compliant | Yes | |
| Weight (Approximate) | 3.36 oz | |
| Width | 1.2" | |
| Download PDF File |
| Brand | Axis |
|---|---|
| Weight (lbs) | 0.6000 |
| UPC | 331021045774 |
| MPN | 0737-001 |
