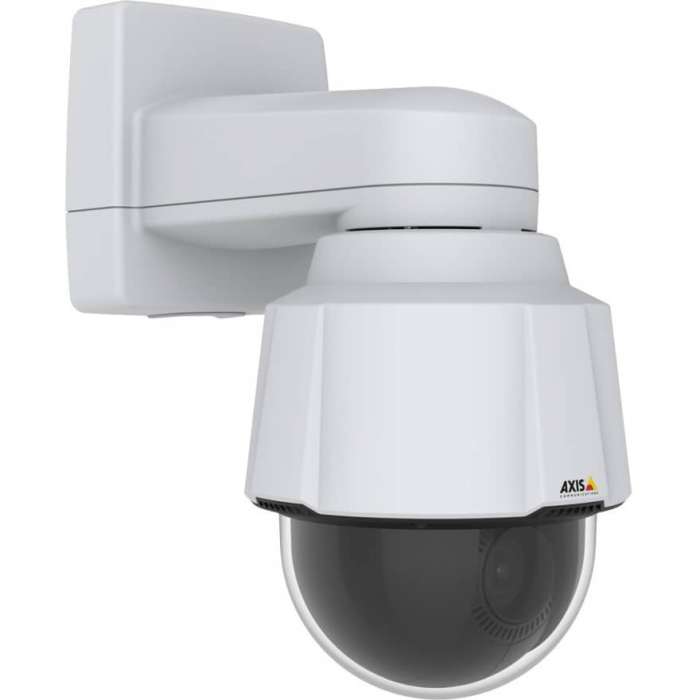

Axis Communications AXIS P5654-E 900 Kilopixel Indoor/Outdoor HD Network Camera, Color, Monochrome, Dome, TAA Compliant, H.264, H.265, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), MJPEG
Delivered in 2-4 business days
- HDTV 720p with 21x optical zoom.
- Lightfinder 2.0 and Forensic WDR.
- Signed firmware and secure boot.
- Electronic image stabilization.
- Zipstream with support for H.264 and H.265 .
AXIS P5654-E PTZ Network Camera is a cost-effective PTZ camera that offers wide area coverage with 77 field of view. Thanks to the newest generation of Axis chip, it offers excellent video quality, even in the most challenging light conditions, and a high level of defense to protect your system. It's ideal for deterrent surveillance of large indoor and outdoor areas and provides great details when zooming in. Great images - anytime. AXIS P5654-E offers superb image quality in HDTV 720p with 21x optical zoom. It's got Forensic WDR for clarity even when there's both dark and light areas in the scene. And Lightfinder 2.0 for low-light images with more saturated colors and sharper images of moving objects. Additionally, it has electronic image stabilization (EIS) for stable images despite vibration. And focus recall gives you instant focus in challenging light conditions. Plus, it comes with four scene profiles (indoor, outdoor, forensic and traffic) with different image settings optimized to suit specific scenarios. Keeping you secure. This PTZ camera is packed with enhanced security functionality to safeguard your system and prevent unauthorized access. Signed firmware and secure boot guarantees that the firmware hasn't been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default. And there's more... This versatile camera with IP66, NEMA 4X and IK10 ratings can handle temperatures ranging from -30C to 50C (-22F to 122F). Based on new generation chip, it offers extended processing power for handling of advanced analytics. And thanks to Axis Zipstream technology with H.264 and H.265 it preserves all the important details while significantly lowering bandwidth and storage requirements.
| Brand Name | AXIS |
|---|---|
| Color Supported (Display & Graphics) | Color |
| Color Supported (Display & Graphics) | Monochrome |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity Technology | Wired |
| Country of Origin | Mexico |
| Diameter | 7.4" |
| Effective Camera Resolution (Display & Graphics) | 900 Kilopixel |
| Features | Built-in Card Reader |
| Features | Cross Line Detection |
| Features | Day/Night |
| Features | Electronic Image Stabilization |
| Features | HTTPS Encryption |
| Features | Motion Detection |
| Features | Password Protection |
| Features | PTZ |
| Features | SD Card Local Storage |
| Features | White Balance |
| Field of View (Display & Graphics) | Horizontal field of view: 77.0°- 3.6°, Vertical field of view: 43.1°- 2.0° |
| Form Factor | Dome |
| HD Recording | Yes |
| Height | 8.5" |
| Image Sensor Type (Display & Graphics) | RGB CMOS |
| Image Sensor Type | RGB CMOS |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP66 |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Lens Included (Lens) | Yes |
| Lens Type (Lens) | Varifocal |
| Longest Shutter Speed (Exposure) | 2 Second |
| Manufacturer Part Number | 01759-001 |
| Manufacturer | Axis Communications |
| Maximum Aperture (Lens) | f/4.5 |
| Maximum Focal Length (Lens) | 84.60 mm |
| Maximum Focal Length | 84.60 mm |
| Maximum Frame Rate (Video) | 60 fps |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Video Resolution (Video) | 1280 x 720 |
| Maximum Video Resolution | 1280 x 720 |
| Minimum Aperture (Lens) | f/1.6 |
| Minimum Focal Length (Lens) | 4 mm |
| Minimum Focal Length | 4 mm |
| Minimum Operating Temperature | -22°F (-30°C) |
| Mount Type | Ceiling Mount |
| Mount Type | Corner Mount |
| Mount Type | Parapet Mount |
| Mount Type | Pendant Mount |
| Mount Type | Pole Mount |
| Mount Type | Recessed Mount |
| Mount Type | Wall Mount |
| NDAA Compliant | Yes |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Network (RJ-45) | Yes |
| Operating Humidity | 100% |
| Optical Zoom (Lens) | 21x |
| Optical Zoom | 21x |
| Package Contents | P5654-E PTZ Network Camera; RJ45 Push-pull Connector (IP66); Hard Ceiling Mount; Spring Pipe Adapter; U-profile Pipe Adapter; Installation Guide; Windows Decoder 1-user License; AVHS Authentication Key; Smoked Dome |
| Product Color | White |
| Product Family | P56 |
| Product Model | P5654-E |
| Product Name | P5654-E PTZ Network Camera |
| Product Series | P56 |
| Product Type | Network Camera |
| Recording Formats | HD |
| Remote Management | Yes |
| Shortest Shutter Speed (Exposure) | 1/66500 Second |
| Storage Type (Storage) | Memory Card |
| TAA Compliant | Yes |
| Video Formats (Video) | H.264 |
| Video Formats (Video) | H.264 (MPEG-4 Part 10/AVC) |
| Video Formats (Video) | H.265 |
| Video Formats (Video) | H.265 (MPEG-H Part 2/HEVC) |
| Video Formats (Video) | MJPEG |
| Weight (Approximate) | 5.51 lb |
| Download PDF File |
| Brand | Axis |
|---|---|
| Weight (lbs) | 7.6500 |
| UPC | 7331021067424 |
| MPN | 01759-001 |
