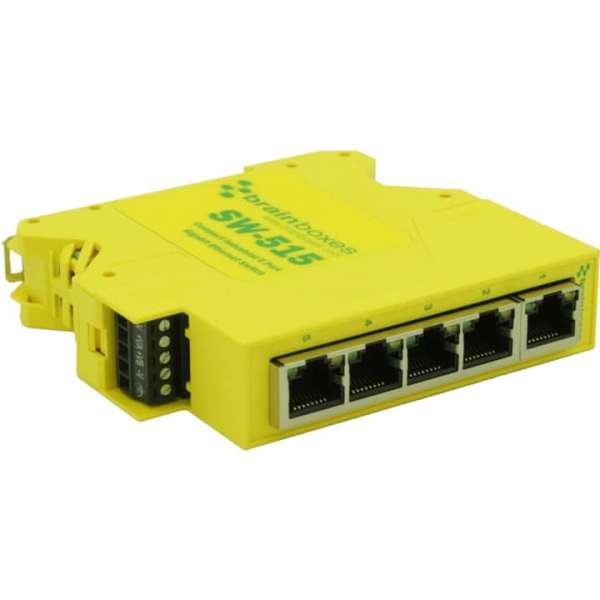

Brainboxes Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable, 5 Ports, TAA Compliant, 2 Layer Supported, Twisted Pair
SKU
INGM7HP577
by Brainboxes
$139.12 /EACH
Delivered in 2-4 business days
In stock
Only 6 left
- Small Footprint Case, only 23mm wide, 94mm deep.
- Redundant dual power inputs - reduces risk of power outage.
- Industrial operating temperature range: -40C to +80C/-40F to +176F - works in extreme conditions.
- Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources.
- 5 Gigabit Ethernet ports .
Category: Switches
Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40C to +80C (-40F to 176F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
| Brand Name | Brainboxes |
|---|---|
| Country of Origin | United Kingdom |
| Depth | 3.7" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | DIN Rail Mountable |
| Height | 3.9" |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer Part Number | SW-515 |
| Manufacturer | Brainboxes Limited |
| Media Type Supported | Twisted Pair |
| Modular (Interfaces/Ports) | No |
| Network Technology | 10/100/1000Base-T |
| Package Contents | Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable; Quick Start Guide |
| Port/Expansion Slot Details (Interfaces/Ports) | 5 x Gigabit Ethernet Network |
| Product Model | SW-515 |
| Product Name | Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| Stack Port (Interfaces/Ports) | No |
| Stack Port | No |
| TAA Compliant | Yes |
| Total Number of Network Ports (Interfaces/Ports) | 5 |
| Total Number of Network Ports | 5 |
| Uplink Port (Interfaces/Ports) | No |
| Weight (Approximate) | 3.95 oz |
| Width | 0.9" |
| Download PDF File |
| UPC | 837324004281 |
|---|---|
| Weight (lbs) | 0.4500 |
| MPN | SW-515 |
| Brand | Brainboxes |
