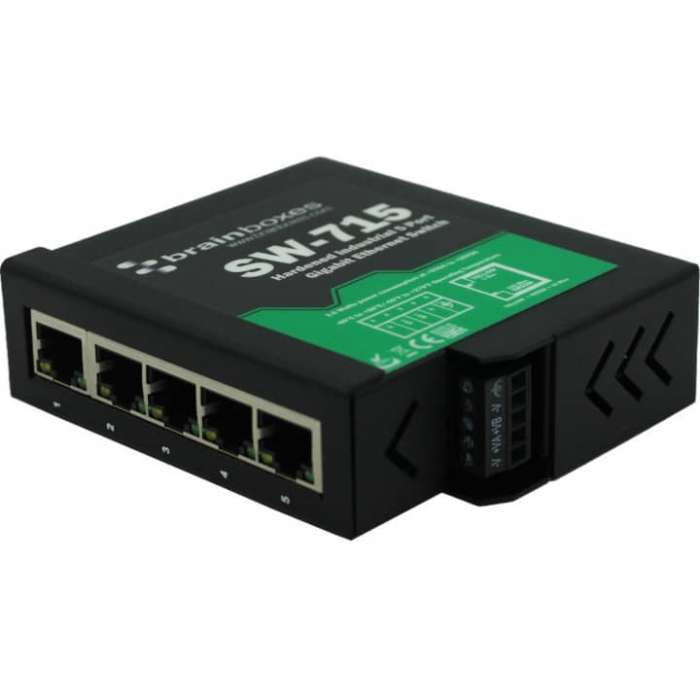

Brainboxes Hardened Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable, 5 Ports, TAA Compliant, 2 Layer Supported, Twisted Pair
SKU
INGM7HP578
by Brainboxes
$165.91 /EACH
Delivered in 2-4 business days
Out of stock
- Industrial operating temp range -40C to +80C / -40F to +176F.
- Compact Hardened Enclosure.
- Redundant dual power inputs - reduces risk of power outage.
- Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources.
- 5 Port Hardened Gigabit Ethernet Switch.
- Integrated DIN Rail Mount with grounding .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Switches
Compact industrial 5 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40C to +80C (-40F to 176F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
| Brand Name | Brainboxes |
|---|---|
| Country of Origin | United Kingdom |
| Depth | 3.7" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | DIN Rail Mountable |
| Height | 3.9" |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer Part Number | SW-715 |
| Manufacturer | Brainboxes Limited |
| Media Type Supported | Twisted Pair |
| Modular (Interfaces/Ports) | No |
| Network Technology | 10/100/1000Base-T |
| Package Contents | Hardened Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable; Quick Start Guide |
| Port/Expansion Slot Details (Interfaces/Ports) | 5 x Gigabit Ethernet Network |
| Product Model | SW-715 |
| Product Name | Hardened Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| Stack Port (Interfaces/Ports) | No |
| Stack Port | No |
| TAA Compliant | Yes |
| Total Number of Network Ports (Interfaces/Ports) | 5 |
| Total Number of Network Ports | 5 |
| Uplink Port (Interfaces/Ports) | No |
| Weight (Approximate) | 9.67 oz |
| Width | 1.1" |
| Download PDF File |
| Brand | Brainboxes |
|---|---|
| Weight (lbs) | 0.8000 |
| UPC | 837324004298 |
| MPN | SW-715 |
