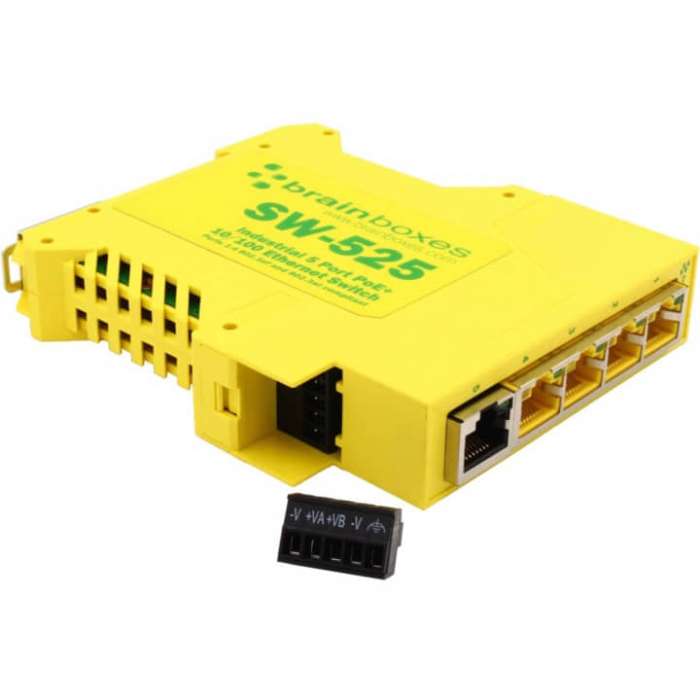

Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch, 5 Ports, Fast Ethernet, 10/100Base-T, TAA Compliant
SKU
INGM9VT923
by Brainboxes
$201.58 /EACH
Delivered in 2-4 business days
Out of stock
- Allows power and data to be combined on the same Ethernet cable
- Ports 1-4 PoE+ capable
- Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)
- PoE Power Budget: 90W @ 70C between all 4 PoE ports simultaneously
- Redundant dual power inputs: +44V to +57V DC
- Industrial operating temp range -40C to +70C / -40F to +176F
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Switches
Industrial Compact 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40C to +70C (-40F to 176F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
| Brand Name | Brainboxes |
|---|---|
| Country of Origin | Great Britain |
| Depth | 0.4" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form Factor | Compact |
| Form Factor | DIN Rail Mountable |
| Height | 4.7" |
| Input Voltage | 44 V DC |
| Input Voltage | 57 V DC |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer Part Number | SW-525 |
| Manufacturer | Brainboxes Limited |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Network Technology | 10/100Base-T |
| Package Contents | Industrial 5 Port PoE+ 10/100 Ethernet Switch; Quick Start Guide |
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 90 W |
| Port/Expansion Slot Details (Interfaces/Ports) | 1 x Fast Ethernet Network |
| Port/Expansion Slot Details (Interfaces/Ports) | 4 x Fast Ethernet PoE+ |
| Power Consumption | 4 W |
| Power Source | Power Supply |
| Power Source | USB |
| Product Model | SW-525 |
| Product Name | Industrial 5 Port PoE+ 10/100 Ethernet Switch |
| Product Type | Ethernet Switch |
| Redundant Power Supply Supported | Yes |
| TAA Compliant | Yes |
| Total Number of Network Ports (Interfaces/Ports) | 5 |
| Total Number of Network Ports | 5 |
| Weight (Approximate) | 4.37 oz |
| Width | 3.9" |
| Download PDF File |
| Brand | Brainboxes |
|---|---|
| Weight (lbs) | 0.3000 |
| UPC | 837324004533 |
| MPN | SW-525 |
